Product Name:	Flat Wire Cables	Insulation Material:	XLPE
Rated Temperature:	105°C	Conductor:	Tinned Or Bare, Stranded Or Solid Copper
Rated Voltage:	300V	Reference Standard:	UL758, UL1581, C22.2 No.210

Product Name:	Flat Wire Cables
Insulation Material:	XLPE
Rated Temperature:	105°C
Conductor:	Tinned Or Bare, Stranded Or Solid Copper
Rated Voltage:	300V
Reference Standard:	UL758, UL1581, C22.2 No.210

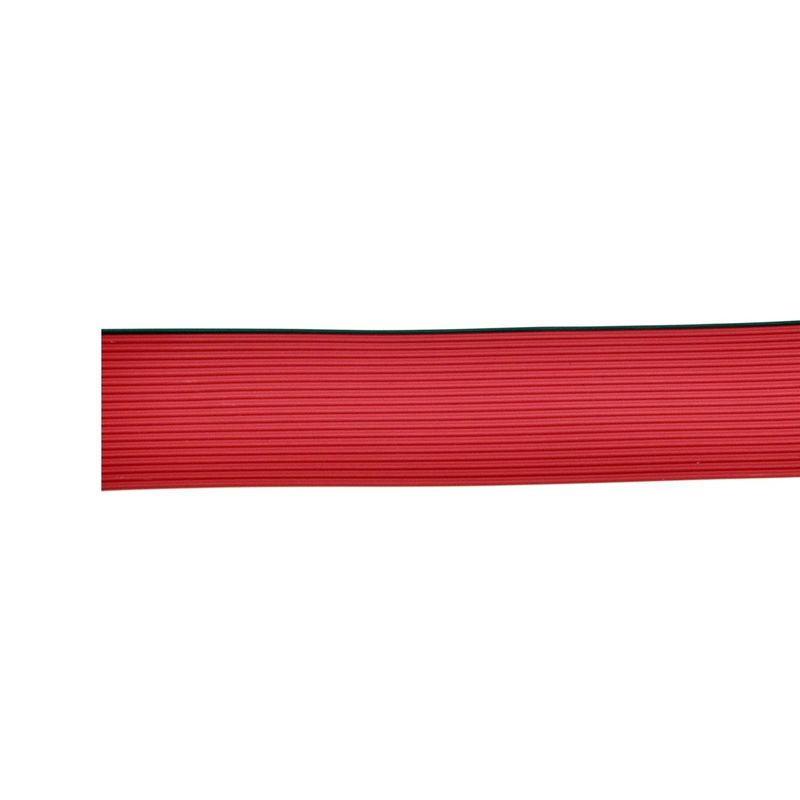

UL21016 XLPE Flat Ribbon Cable Red High Temp AWM Flat Cable

UL21016 XLPE Flat Ribbon Cable Red High Temp AWM Flat Cable

Rated Voltage: 300V

Rated Temperature: 105ºC

Insulation Material: XLPE

Conductor: Tinned or Bare, Stranded or Solid Copper

Reference Standard: UL758, UL1581, C22.2 No.210

Passes UL VW-1 & CSA FT1 vertical flame test.

Uniform insulation thickness of wire to ensure easy stripping and cutting.

For internal wiring of electronic and electrical equipment and appliance.

Conductor			Insulation	Max. Cond. Resistance at 20°C (Ω/km)
AWG	Construction (No./mm)	Diameter (mm)	Diameter (mm)	Max. Cond. Resistance at 20°C (Ω/km)
2	28	7/0.127	0.90x1.90	239
3	28	7/0.127	0.90x2.90	239
4	28	7/0.127	0.90x3.90	239
5	28	7/0.127	0.90x4.90	239
2	26	7/0.16	1.00x2.10	150
3	26	7/0.16	1.00x3.20	150
4	26	7/0.16	1.00x4.30	150
5	26	7/0.16	1.00x5.40	150
2	24	7/0.20	1.12x2.34	94.2
3	24	7/0.20	1.12x3.56	94.2
4	24	7/0.20	1.12x4.78	94.2
5	24	7/0.20	1.12x6.00	94.2
2	22	17/0.16	1.28x2.66	59.4
3	22	17/0.16	1.28x4.04	59.4
4	22	17/0.16	1.28x5.42	59.4
5	22	17/0.16	1.28x6.80	59.4
2	20	26/0.16	1.46x3.02	36.7
※The above datasheet is for reference only, please refer to the final specification.

Q: What is the brand name of this product?
A: The brand name of this product is XSD Cable.
Q: What is the model number of this product?
A: The model number of this product is Flat Cable.
Q: Where is this product manufactured?
A: This product is manufactured in Guangdong, China.
Q: What certifications does this product have?
A: This product is certified by UL, CE, and ISO:9001.
Q: Is the price of this product negotiable?
A: Yes, the price of this product is negotiable.
Q: How long is the delivery time for this product?
A: The delivery time for this product is 7-30 days.
Q: What are the accepted payment terms for this product?
A: The accepted payment terms for this product are T/T.
