Rainbow Electric Flat Wire Cables , Industrial FEP Ribbon Cable

Name: Rainbow Electric Flat Wire Cables , Industrial FEP Ribbon Cable
Brand: XSD Cable
SKU: Flat cable
Rating: 4.8 (144 reviews)

Product Details

Place of Origin: Guangdong,China

Brand Name: XSD Cable

Certification: UL,CE,ISO:9001

Model Number: Flat cable

Payment & Shipping Terms

Minimum Order Quantity: 3050Meters

Price: Negotiate

Packaging Details: 31*31*15CM

Delivery Time: 7-30days

Payment Terms: T/T

Supply Ability: 1000000pcs/month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                FEP Flat Wire Cables, Rainbow Flat Wire Cables, Industrial FEP ribbon cable


Material:	Copper	Jacket Thickness:	1.2mm
Length:	50m	Color:	Black
Outer Diameter:	3.3mm	Packaging:	Roll
Size:	2.5mm	Temperature Rating:	105°C

Material:	Copper
Jacket Thickness:	1.2mm
Length:	50m
Color:	Black
Outer Diameter:	3.3mm
Packaging:	Roll
Size:	2.5mm
Temperature Rating:	105°C

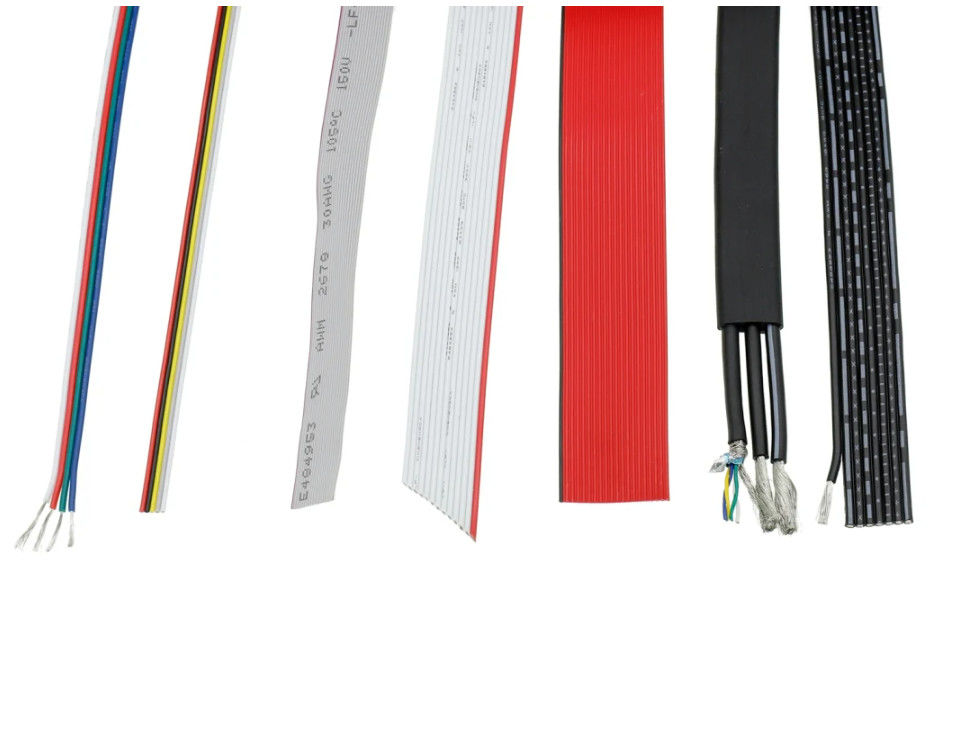

Rainbow Electric Flat Wire Cables , Industrial FEP Ribbon Cable

Flat Rainbow Electric Cable FEP High Temperature 150℃ Industrial Equipment

Product Description:

Construction: Flat wire cables are typically constructed with a flat ribbon of multiple parallel wires that are either stranded or solid. The wires are then coated with insulation material, such as PVC or Teflon, and then sandwiched between two layers of insulation to form a flat and flexible cable.

Features:

Product Name: Flat Wire Cables
Size: 2.5mm
Weight: 3.5kg
Packaging: Roll
Voltage Rating: 300V
Temperature Rating: 105°C
Special Features: Flat Ribbon Cables, Flat Strip Cables, Flat Cable Wires

Technical Parameters:

Conductor				Insulation		Max. Cond. Resistance at 20°C (Ω/km)
No. of Cores	AWG	Construction (No./mm)	Diameter (mm)	Thickness (mm)	Diameter (mm)	Max. Cond. Resistance at 20°C (Ω/km)
2	28	7/0.127	0.38	0.43	1.24X2.58	239
2	26	7/0.16	0.48	0.43	1.34X2.78	150
2	24	7/0.2	0.60	0.43	1.45X3.04	94.2
2	22	7/0.254	0.76	0.43	1.62x3.34	59.4
2	20	26/0.16	0.94	0.43	1.80X3.70	36.7
2	18	41/0.16	1.18	0.43	2.04X4.23	23.2
3	28	7/0.127	0.38	0.43	1.24X3.92	239
3	26	7/0.16	0.48	0.43	1.34X4.22	150
3	24	7/0.2	0.60	0.43	1.45X4.63	94.2
3	22	7/0.254	0.76	0.43	1.62X5.06	59.4

FAQ:

Q: Which brand is XSD Cable?: A: XSD Cable is a brand of flat cable.
Q: What is the model number of the flat cable?: A: The model number of the flat cable is Flat cable.
Q: Where is the flat cable produced?: A: The flat cable is produced in Guangdong, China.
Q: What certifications does the flat cable have?: A: The flat cable has UL, CE, and ISO:9001 certifications.
Q: How many flat cables can be produced per month?: A: XSD Cable can produce up to 1000000pcs/month.
