Highlight:
                                                                                                                                                                                Flat Rainbow Electric Cable, FEP Rainbow Electric Cable


Rated Voltage:	300V	Rated Temperature:	150ºC
Insulation Material:	Tinned Copper	Reference Standard:	UL758, UL1581, C22.2 No.210

Rated Voltage:	300V
Rated Temperature:	150ºC
Insulation Material:	Tinned Copper
Reference Standard:	UL758, UL1581, C22.2 No.210

Flat Rainbow Electric Cable FEP High Temperature 150℃ OEM

Product Description:

Conductor			Insulation		Max. Cond. Resistance at 20°C (Ω/km)
AWG	Construction (No./mm)	Diameter (mm)	Thickness (mm)	Diameter (mm)	Max. Cond. Resistance at 20°C (Ω/km)
28	1/0.32 7/0.12	0.32 0.36	0.305 0.305	0.87 0.91	381.00
26	7/0.16 19/0.10	0.48 0.48	0.305 0.305	1.09 1.11	150.00
24	1/0.50 7/0.20 19/0.12	0.5 0.6 0.6	0.305 0.305 0.305	1.11 1.21 1.21	94.20
22	1/0.65 7/0.254 19/0.15	0.65 0.76 0.75	0.33 0.33 0.33	1.31 1.42 1.41	59.40
20	1/0.81 7/0.31 26/0.16	0.81 0.93 0.93	0.33 0.33 0.33	1.47 1.59 1.59	36.70
18	1/1.02 7/0.39 19/0.235	1.02 1.17 1.17	0.33 0.33 0.33	1.68 1.83 1.83	23.20
16	1/1.30 7/0.49 19/0.30	1.30 1.47 1.50	0.33 0.33 0.33	1.96 2.13 2.16	14.60
14	19/0.37	1.85	0.33	2.51	8.96
※The above datasheet is for reference only, please refer to the final specification.

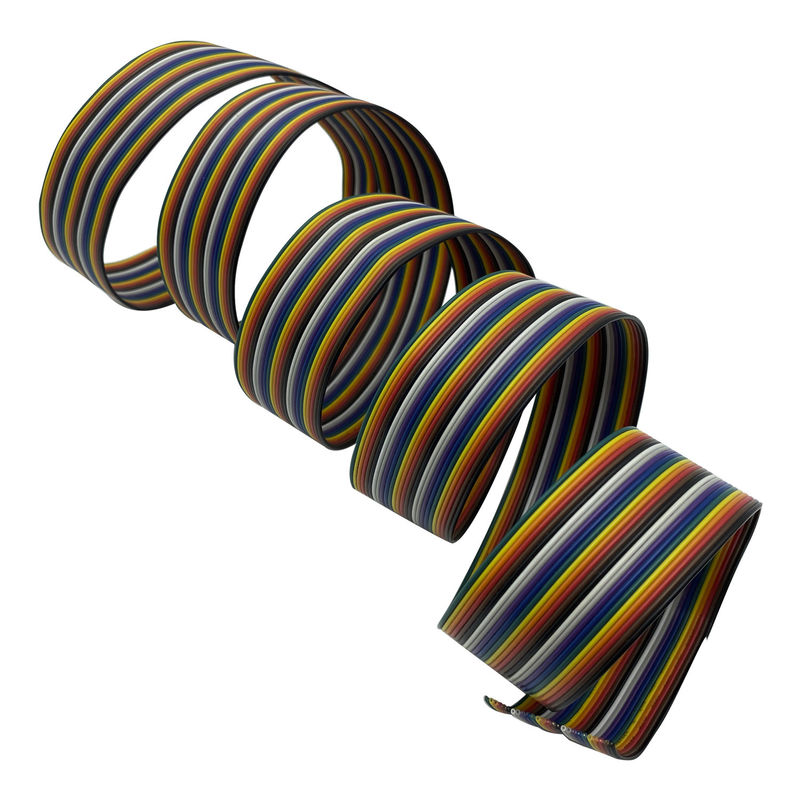

Flat Rainbow Electric Cable FEP High Temperature 150℃ OEM 0

Flat Rainbow Electric Cable FEP High Temperature 150℃ OEM

Rated voltage: 300V
Rated temperature: 150ºC
Insulation Material: FEP
Conductor: Tinned Copper
Reference Standard: UL758, UL1581, C22.2 No.210
Passes UL VW-1 & CSA FT1 vertical flame test.
Uniform insulation thickness of wire to ensure easy stripping and cutting.
For internal wiring of home appliance, lighting, heater, motor, generator, UAV, robot, industrial equipment.

FAQ:

Q: What is the brand name of this product?
A: The brand name of this product is XSD Cable.
Q: What is the model number of this product?
A: The model number of this product is Flat cable.
Q: Where is this product manufactured?
A: This product is manufactured in Guangdong, China.
Q: What certifications does this product have?
A: This product is certified by UL, CE, and ISO:9001.
Q: Can the price of this product be negotiated?
A: Yes, the price of this product can be negotiated.
Q: What is the estimated delivery time for this product?
A: The estimated delivery time for this product is 7-30 days.
Q: What are the accepted payment terms for this product?
A: The accepted payment terms for this product are T/T.
