Product Description:

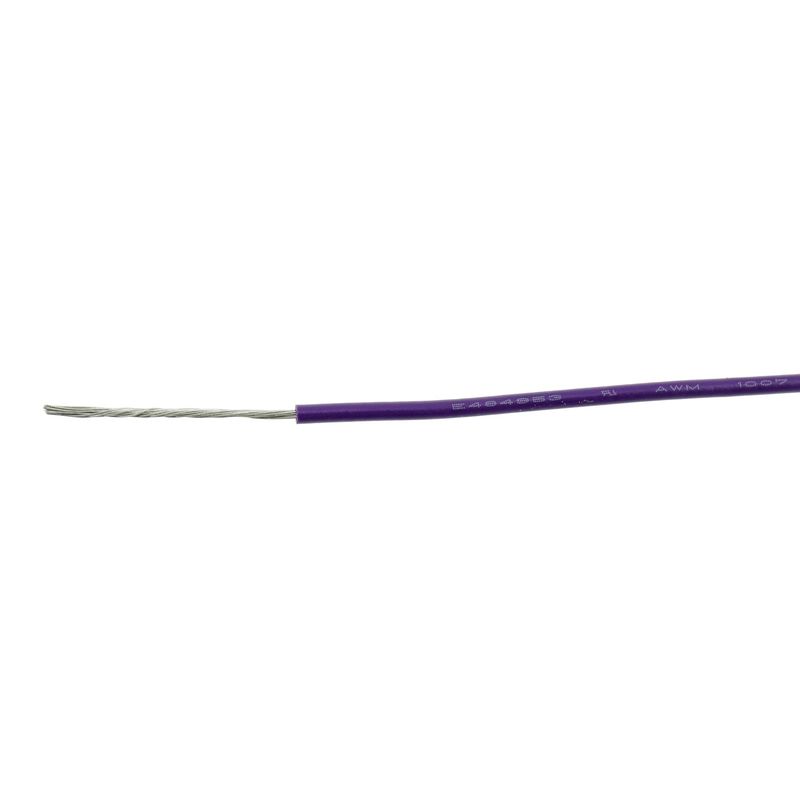

Single-Conductor Wire - Product Overview
The Single-Conductor Wire, also known as Single-Wire Cable, Electric Cable, or Electrical Wire, is a type of cable that consists of a single conducting wire and is used for various electrical applications. It is designed to transmit electrical signals or power from one point to another.
Stranding
The Single-Conductor Wire features a solid stranding, which means that the wire is made up of a single, solid copper conductor. This type of construction provides excellent electrical conductivity and resistance to breakage.
Conductor
The Single-Conductor Wire uses a high-quality copper conductor, which is known for its excellent conductivity and durability. It ensures reliable and efficient transmission of electrical signals or power.
Package
The Single-Conductor Wire comes in a customized package, tailored to meet the specific needs and requirements of our customers. This allows for easy handling, storage, and transportation of the wire.
Rating Voltage
The Single-Conductor Wire has a rating voltage of 1000V/1200V, making it suitable for use in a wide range of applications, including industrial, commercial, and residential settings. It can handle high voltage levels without any compromise in performance.
With its high-quality construction, compliance with industry standards, and customizable packaging, the Single-Conductor Wire is the ideal choice for all your electrical needs. Contact us today to learn more!
| Conductor |
Insulation |
Max. Cond Resistance at 20°C
(Ω/km) |
| AWG |
Construction
(No./mm) |
Diameter
(mm) |
Thickness
(mm) |
Diameter
(mm) |
| 30 |
7/0.10 |
0.30 |
0.41 |
1.12 |
381 |
| 28 |
7/0.127 |
0.38 |
0.41 |
1.20 |
239 |
| 26 |
7/0.16 |
0.48 |
0.41 |
1.30 |
150 |
| 24 |
11/0.16 |
0.61 |
0.41 |
1.43 |
94.2 |
| 22 |
17/0.16 |
0.76 |
0.41 |
1.58 |
59.4 |
| 20 |
26/0.16 |
0.94 |
0.41 |
1.76 |
36.7 |
| 18 |
41/0.16 |
1.18 |
0.41 |
2.00 |
23.2 |
| 16 |
26/0.254 |
1.49 |
0.41 |
2.32 |
14.6 |
Packing and Shipping:
Packaging and Shipping for Single Conductor Wire
Our Single Conductor Wire is packaged and shipped with care to ensure its safe arrival at your location. We follow strict packaging guidelines to protect the wire from damage during transit.
Packaging
The Single Conductor Wire is first wound onto a spool and then wrapped with protective material to prevent any tangling or damage to the wire. The spool is then placed in a sturdy cardboard box and additional cushioning materials are added to provide extra protection during shipping.
We also offer the option of custom packaging for larger orders, where the wire can be cut to specific lengths and packaged in reels or coils according to your requirements.
Shipping
We use reliable and trusted shipping carriers to ensure your order is delivered on time and in good condition. We offer a variety of shipping options to suit your budget and delivery timeline.
For domestic orders, we offer standard ground shipping as well as expedited shipping for urgent orders. For international orders, we offer air freight or sea freight options depending on the size and weight of the order.
Once your order is shipped, we will provide you with a tracking number so you can easily monitor its progress and estimated delivery date.
At Single Conductor Wire, we strive to provide excellent packaging and shipping services to ensure your order is delivered to you in perfect condition.
