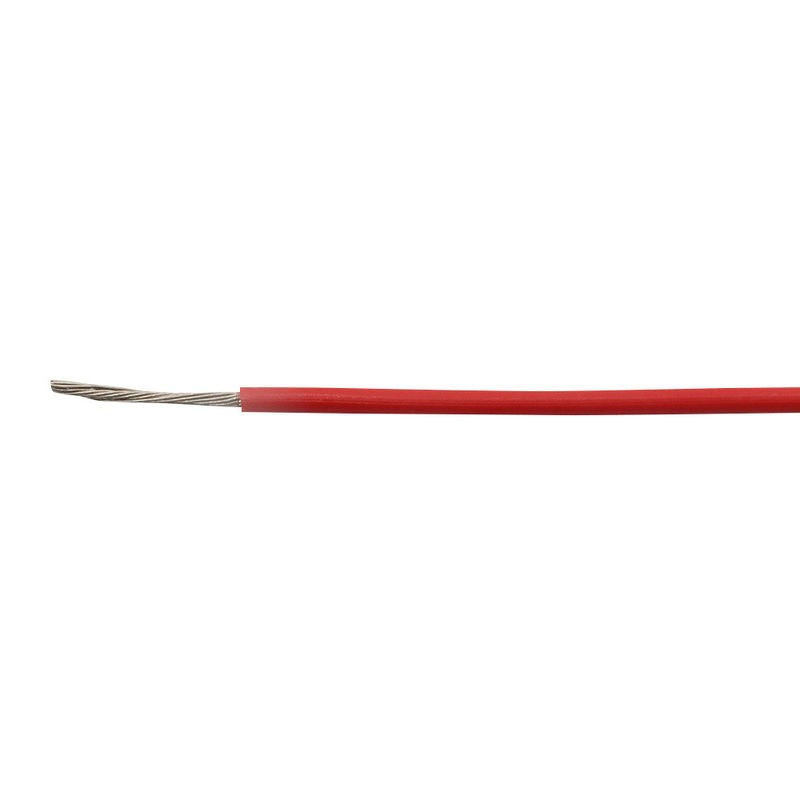

UL3386 Standard Single-Core Cable Solid Stranding Performance

Name: UL3386 Standard Single-Core Cable Solid Stranding Performance
Brand: XSD Cable
SKU: Single Conductor Wire
Rating: 5 (183 reviews)

Product Details

Place of Origin: Guangdong,China

Brand Name: XSD Cable

Certification: UL,CE,ISO:9001

Model Number: Single Conductor Wire

Payment & Shipping Terms

Minimum Order Quantity: 3050Meters

Price: Negotiate

Packaging Details: 31*31*15CM

Delivery Time: 7-14days

Payment Terms: T/T

Supply Ability: 1000000Meter/month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                Solid Stranding UL3386 Single-Core Cable, UL3386 Single-Core Cable


Insulation Material:	XLPE	Stranding:	Solid
Rated Temperature:	105°C	Rating Voltage:	600V
Conductor:	Tinned Or Bare, Stranded Or Solid Copper	Standard:	UL758, UL1581, CSA C22.2 No.210

Insulation Material:	XLPE
Stranding:	Solid
Rated Temperature:	105°C
Rating Voltage:	600V
Conductor:	Tinned Or Bare, Stranded Or Solid Copper
Standard:	UL758, UL1581, CSA C22.2 No.210

UL3386 Standard Single-Core Cable Solid Stranding Performance

Product Description:

UL3386 Electric Hook Up Wire XLPE Insulated Single Conductor

Rated Voltage: 600V
Rated Temperature: 105ºC
Insulation Material: XLPE
Conductor: Tinned or Bare, Stranded or Solid Copper
Reference Standard: UL758, UL1581, C22.2 No.210
Uniform insulation thickness of wire to ensure easy stripping and cutting.
For internal wiring of electronic and electrical equipment and appliance.

Technical Parameters:

Conductor			Insulation		Max. Cond. Resistance at 20°C (Ω/km)
AWG	Construction (No./mm)	Diameter (mm)	Thickness (mm)	Diameter (mm)	Max. Cond. Resistance at 20°C (Ω/km)
30	7/0.10	0.30	0.80	1.90	381.00
28	7/0.127	0.38	0.80	1.98	239.00
26	7/0.16	0.48	0.80	2.08	150.00
24	11/0.16	0.61	0.80	2.21	94.20
22	17/0.16	0.76	0.80	2.36	59.40
20	26/0.16	0.94	0.80	2.54	37.40
18	41/0.16	1.18	0.80	2.78	23.50
16	26/0.254	1.50	0.80	3.10	14.70
14	41/0.254	1.90	0.80	3.50	9.25
12	65/0.254	2.40	0.80	4.00	5.75
10	105/0.254	3.00	0.80	4.60	3.62
※The above datasheet is for reference only, please refer to the final specification.

Packing and Shipping:

Single Conductor Wire

Packaging and Shipping

Our Single Conductor Wire is carefully packaged and shipped to ensure its safe arrival at your location. We take great care in packaging our products to prevent any damage during transportation.

Packaging

The wire is wrapped in a protective material and placed in a sturdy cardboard box. The box is then sealed with tape to prevent any moisture or dirt from entering.

Shipping

We offer various shipping options to best suit your needs. Our standard shipping method is through reliable courier services, ensuring prompt and secure delivery. We also offer express shipping for urgent orders.

For international orders, we carefully comply with all custom regulations to ensure smooth delivery. We provide all necessary documentation and certifications for customs clearance.

Once your order is shipped, we will provide you with a tracking number so you can easily track your package's delivery status.

At Single Conductor Wire, we strive to provide a hassle-free and efficient packaging and shipping process to ensure your satisfaction with our product.
