Achieve Optimal Solar Performance With Superior Solar Cable Assembly
Product Description:
Overview
| Product |

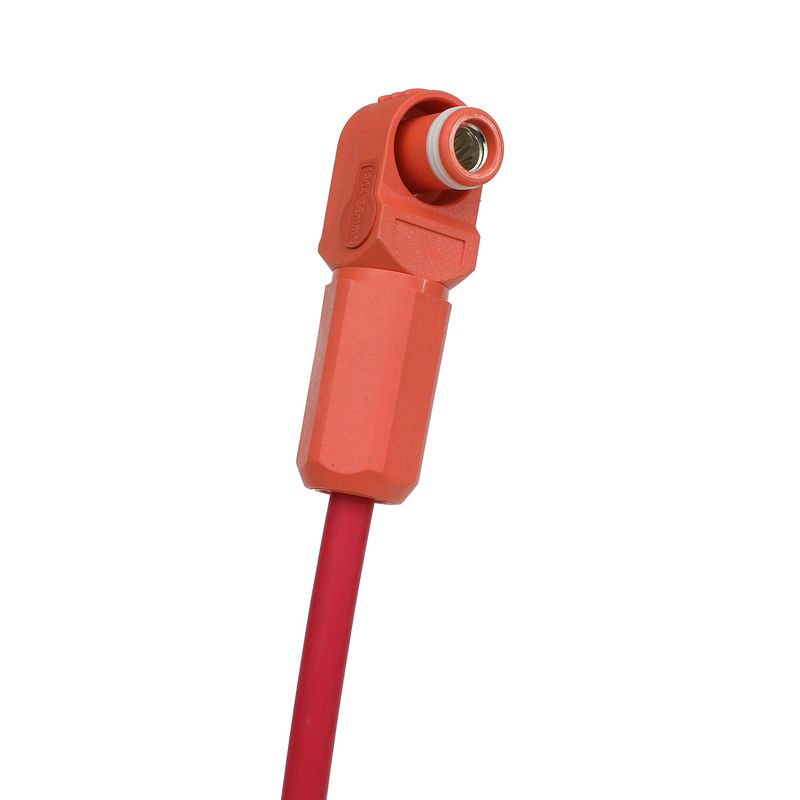

Custom VDE UL Certified PV 2KV 35mm2 Energy Storage Cable |
| Plug/Socket |
Rated Current |
60A~600A |
| Rated Voltage |
300V~2000V |
| Operating Temp. |
-40℃~125℃ |
| Wire |
Model |
NSGAFÖU Rubber Wire, UL1015, UL10269, UL11627, UL3321, UL3271, etc. |
| Size |
1mm2~120mm2 |
| Lug/Terminal |
Model |
SC1.5~SC120 |
| Applicable Wire Range |
1mm2~120mm2 |
| Crrugated Pipe |
Optional |
| Features |
IP67 Waterproof, Flame Retardant, High Temperature Retardant |
| Touch Proof, Safe Handling, Durable Design, Reliable Connection |
| Quick Lock, Press-to-Release Design, High Pressure Resistance |
| Application |
Solar Energy Storage System(ESS) |
| Energy Storage Cabinet, Battery Pack, Battery Storage Tank |
| Energy Storage Converter, Power Energy Storage System |
| Verification |
UL, VDE, CCC, ISO 9001, IATF 16949, RoHS, REACH, etc. |
| OEM |
Welcomed |
Plug Datasheet
| 1. Material |
| Shell: PA66+30%GF |
| Electrical Copper Row: Brass, Sliver-plated |
| 2. Electrical Performance |
| Rated Current: 60A,100A,120A,150A,200A, 350A |
| Rated Voltage: DC690V |
| Impulse Withstand Voltage: AC5000V, Leakage≤1mA |
| Insulation Resistance: DC1000V, Resistance Value≥1000MΩ |
| 3. Operating Environment |
| Operating Temp.: -40℃~125℃ |
| Operating Humidity: 5%~95%RH |
| Flame Resistance: UL94 V-0 |
| Salt Spray Test: 48H |
Socket Datasheet
| 1. Material |
| Shell: PA66+30%GF |
| Electrical Copper Row: Brass, Sliver-plated |
| 2. Electrical Performance |
| Rated Current: 100A, 150A, 200A, 250A, 350A |
| Rated Voltage: DC690V |
| Impulse Withstand Voltage: AC5000V, Leakage≤1mA |
| Insulation Resistance: DC2500V, Resistance Value≥2000MΩ |
| 3. Operating Environment |
| Operating Temp.: -40℃~125℃ |
| Operating Humidity: 5%~95%RH |
| Flame Resistance: UL94 V-0 |
| Salt Spray Test: 48H |
Packing and Shipping:
Packaging and Shipping for Solar Cable Assembly
Our Solar Cable Assembly is carefully packaged and shipped to ensure safe arrival and protection during transportation. We understand the importance of delivering products in pristine condition to our customers, and we take all necessary measures to make sure that our Solar Cable Assembly arrives at your doorstep in perfect condition.
Packaging
Our Solar Cable Assembly is packaged in sturdy and durable materials to protect it from any potential damage during shipping. The cables are coiled and neatly organized to prevent tangling and ensure ease of installation. Each cable is also individually wrapped in plastic to provide an extra layer of protection against moisture and other environmental factors.
In addition, our packaging includes clear labels with product information and handling instructions for proper and safe handling of the Solar Cable Assembly.
Shipping
We offer a variety of shipping options to meet the specific needs of our customers. Our team works closely with reliable shipping partners to ensure timely delivery and proper handling of the Solar Cable Assembly.
For domestic shipments, we use reputable carriers such as UPS, FedEx, and USPS. For international shipments, we partner with DHL or other trusted freight forwarders to ensure efficient and secure delivery.
Once your order is processed and shipped, we will provide you with a tracking number so that you can monitor the status of your shipment and estimated delivery date.
We also offer expedited shipping options for urgent orders. Please contact us for more information and pricing.
Thank you for choosing our Solar Cable Assembly. We are committed to providing you with high-quality products and excellent customer service.
