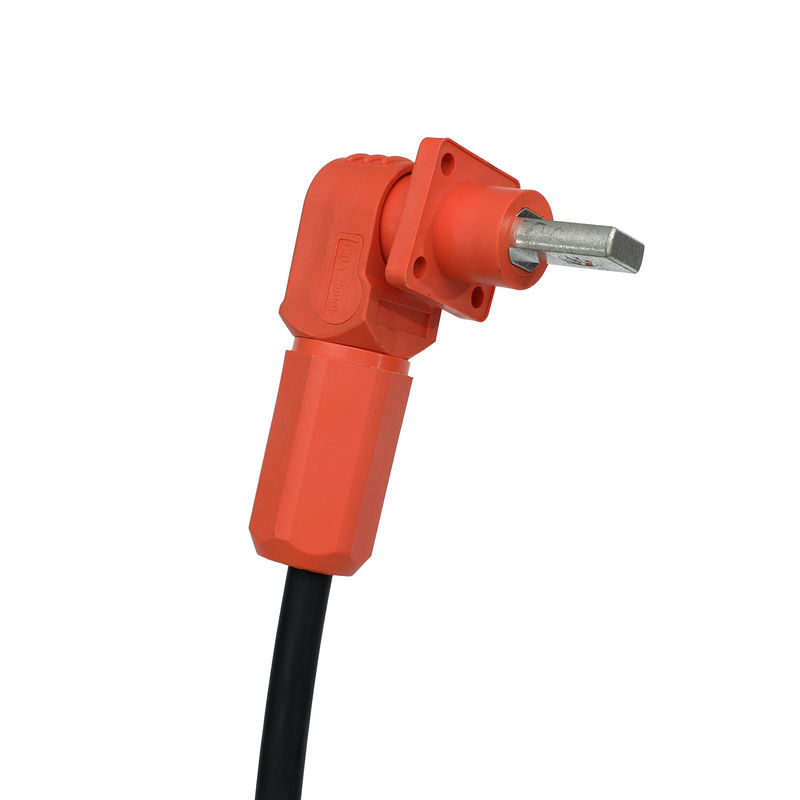

Secure Solar Cable Assembly 120mm2 For Safe And Solar Energy

Name: Secure Solar Cable Assembly 120mm2 For Safe And Solar Energy
Brand: XSD Cable
SKU: Solar Cable Assembly
Rating: 4.6 (120 reviews)

Product Details

Place of Origin: Guangdong,China

Brand Name: XSD Cable

Certification: UL,CE,ISO:9001,VDE

Model Number: Solar Cable Assembly

Payment & Shipping Terms

Minimum Order Quantity: 300sets

Price: Negotiate

Packaging Details: 32*27*17CM

Delivery Time: 7-30days

Payment Terms: T/T

Supply Ability: 200000pcs/month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                Solar Cable Assembly 120mm2, Secure Solar Cable Assembly


Rated Current:	60A~600A	Rated Voltage:	300V~2000V
Operating Temp:	-40℃~125℃	Size:	1mm2~120mm2

Rated Current:	60A~600A
Rated Voltage:	300V~2000V
Operating Temp:	-40℃~125℃
Size:	1mm2~120mm2

Secure Solar Cable Assembly 120mm2 For Safe And Solar Energy

Secure And Durable Solar Cable Assembly For Safe And Solar Energy

Product Description:

Product	Custom VDE UL Certified PV 2KV 35mm2 Energy Storage Cable
Plug/Socket	Rated Current	60A~600A
	Rated Voltage	300V~2000V
	Operating Temp.	-40℃~125℃
Wire	Model	NSGAFÖU Rubber Wire, UL1015, UL10269, UL11627, UL3321, UL3271, etc.
	Size	1mm2~120mm2
Lug/Terminal	Model	SC1.5~SC120
	Applicable Wire Range	1mm2~120mm2
Crrugated Pipe	Optional
Features	IP67 Waterproof, Flame Retardant, High Temperature Retardant
	Touch Proof, Safe Handling, Durable Design, Reliable Connection
	Quick Lock, Press-to-Release Design, High Pressure Resistance
Application	Solar Energy Storage System(ESS)
	Energy Storage Cabinet, Battery Pack, Battery Storage Tank
	Energy Storage Converter, Power Energy Storage System
Verification	UL, VDE, CCC, ISO 9001, IATF 16949, RoHS, REACH, etc.
OEM	Welcomed

Technical Parameters:

Plug Datasheet

1. Material

Shell: PA66+30%GF

Electrical Copper Row: Brass, Sliver-plated

2. Electrical Performance

Rated Current: 60A,100A,120A,150A,200A, 350A

Rated Voltage: DC690V

Impulse Withstand Voltage: AC5000V, Leakage≤1mA

Insulation Resistance: DC1000V, Resistance Value≥1000MΩ

3. Operating Environment

Operating Temp.: -40℃~125℃

Operating Humidity: 5%~95%RH

Flame Resistance: UL94 V-0

Salt Spray Test: 48H

Socket Datasheet

1. Material

Shell: PA66+30%GF

Electrical Copper Row: Brass, Sliver-plated

2. Electrical Performance

Rated Current: 100A, 150A, 200A, 250A, 350A

Rated Voltage: DC690V

Impulse Withstand Voltage: AC5000V, Leakage≤1mA

Insulation Resistance: DC2500V, Resistance Value≥2000MΩ

3. Operating Environment

Operating Temp.: -40℃~125℃

Operating Humidity: 5%~95%RH

Flame Resistance: UL94 V-0

Salt Spray Test: 48H

Wire Model

Model	Size	Rated Voltage	Rated Temperature	Insulation	Conductor
UL1015	20~2/0AWG	600V	105ºC	PVC	Tinned or Bare, Stranded or Solid Copper
UL10269	20~2/0AWG	1000V	105ºC	PVC
UL11627	20~2/0AWG	2000V	105ºC	PVC
UL3271	20~2/0AWG	600V	125ºC	XLPE
UL3321	20~2/0AWG	600V	150ºC	XLPE
NSGAFÖU	1.5~120mm²	1.8/3KV	-40~90ºC	Rubber

FAQ

Q1: Are you a manufacturer?

A1: Yes, we are a manufacturer located in Dongguan city of China. We are able to provide OEM/ODM services for wires, cables, custom cable assembly around the world.

Q2: Can I get a free sample?
A2: Yes, we are willing to provide sample in stock for free but freight collected. Welcome to contact us for customized products.

Q3: Is the quality of your product guaranteed?
A3: Yes, our workshop are equipped with Brand-new and Advanced Machines & Test Equipments. Our production process and quality control are in strictly accordance with the international standards and customers’ requirements.

Q4: What is the delivery lead time?
A4: Generally, the lead time is around 10-15 days for wire production, around 20-40 days for cable assembly. It depends on quantity and the complexity of the products.
