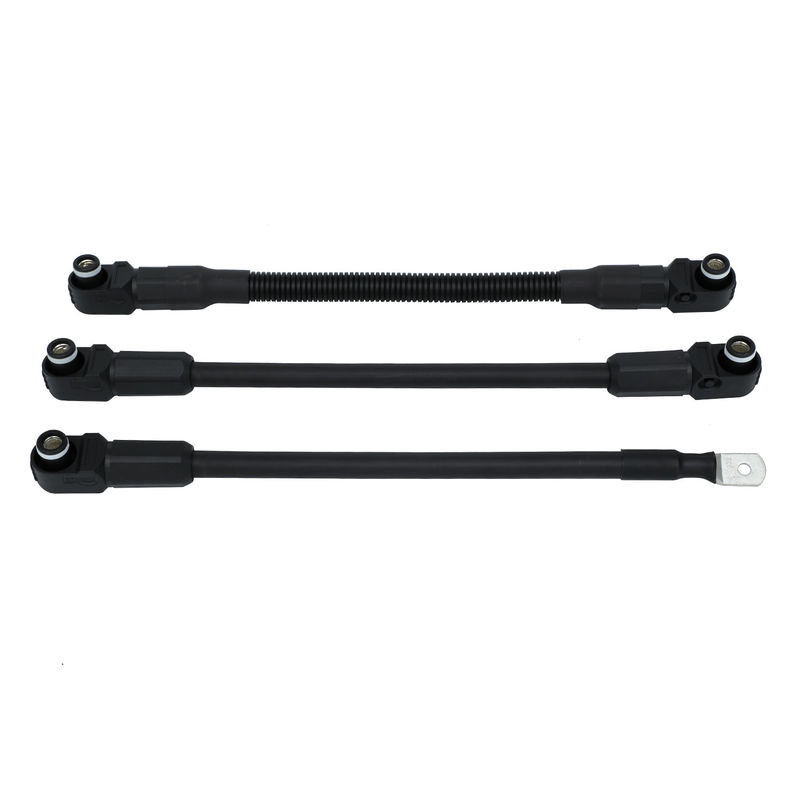

25mm2 35mm2 UL11627 1KV 3KV Solar Connection Cable For ESS

Product Details

Place of Origin: Guangdong,China

Brand Name: XSD Cable

Certification: UL,CE,ISO:9001,VDE

Model Number: Solar Cable Assembly

Payment & Shipping Terms

Minimum Order Quantity: 300sets

Price: Negotiate

Packaging Details: 32*27*17CM

Delivery Time: 7-30days

Payment Terms: T/T

Supply Ability: 200000pcs/month

Get Best Price
Highlight:

3KV Solar Connection Cable

,

25mm2 Solar Connection Cable

,

ESS Solar Connection Cable

Rated Current:
60A~600A
Rated Voltage:
300V~2000V
Operating Temp:
-40℃~125℃
OEM:
Welcomed
Rated Current:
60A~600A
Rated Voltage:
300V~2000V
Operating Temp:
-40℃~125℃
OEM:
Welcomed
25mm2 35mm2 UL11627 1KV 3KV Solar Connection Cable For ESS

25mm2 35mm2 UL11627 1KV 3KV Solar Connection Cable For ESS

Product Description:

Overview



Product 25mm2 35mm2 UL11627 1KV 3KV Solar Connection Cable for ESS
Plug/Socket Rated Current 60A~600A
Rated Voltage 300V~2000V
Operating Temp. -40℃~125℃
Wire Model NSGAFÖU Rubber Wire, UL1015, UL10269, UL11627, UL3321, UL3271, etc.
Size 1mm2~120mm2
Lug/Terminal Model SC1.5~SC120
Applicable Wire Range 1mm2~120mm2
Crrugated Pipe Optional
Features IP67 Waterproof, Flame Retardant, High Temperature Retardant
Touch Proof, Safe Handling, Durable Design, Reliable Connection
Quick Lock, Press-to-Release Design, High Pressure Resistance
Application Solar Energy Storage System(ESS)
Energy Storage Cabinet, Battery Pack, Battery Storage Tank
Energy Storage Converter, Power Energy Storage System
Verification UL, VDE, CCC, ISO 9001, IATF 16949, RoHS, REACH, etc.
OEM Welcomed



Plug Datasheet



1. Material
Shell: PA66+30%GF
Electrical Copper Row: Brass, Sliver-plated
2. Electrical Performance
Rated Current: 60A,100A,120A,150A,200A, 350A
Rated Voltage: DC690V
Impulse Withstand Voltage: AC5000V, Leakage≤1mA
Insulation Resistance: DC1000V, Resistance Value≥1000MΩ
3. Operating Environment
Operating Temp.: -40℃~125℃
Operating Humidity: 5%~95%RH
Flame Resistance: UL94 V-0
Salt Spray Test: 48H


Socket Datasheet



1. Material
Shell: PA66+30%GF
Electrical Copper Row: Brass, Sliver-plated
2. Electrical Performance
Rated Current: 100A, 150A, 200A, 250A, 350A
Rated Voltage: DC690V
Impulse Withstand Voltage: AC5000V, Leakage≤1mA
Insulation Resistance: DC2500V, Resistance Value≥2000MΩ
3. Operating Environment
Operating Temp.: -40℃~125℃
Operating Humidity: 5%~95%RH
Flame Resistance: UL94 V-0
Salt Spray Test: 48H

Wire Model



Model Size Rated Voltage Rated Temperature Insulation Conductor
UL1015 20~2/0AWG 600V 105ºC PVC Tinned or Bare, Stranded or Solid Copper
UL10269 20~2/0AWG 1000V 105ºC PVC
UL11627 20~2/0AWG 2000V 105ºC PVC
UL3271 20~2/0AWG 600V 125ºC XLPE
UL3321 20~2/0AWG 600V 150ºC XLPE
NSGAFÖU 1.5~120mm² 1.8/3KV -40~90ºC Rubber


Lug/Terminal Model



Model Wire Range A.W.G.(mm2) Stud Size (mm) Material
Min. Max. Cu
SC1.5 12AWG (1.5mm2) 4.3 6.4
SC2.5 14AWG (2.5mm2) 4.3 8.4
SC4 12AWG (4mm2) 4.3 8.4
SC6 10AWG (6mm2) 4.3 8.4
SC10 8AWG (10mm2) 4.3 13
SC16 6AWG (16mm2) 4.3 10.5
SC25 4AWG (25mm2) 4.2 10.5
SC35 2AWG (35mm2) 6.4 10.5
SC50 1/0AWG (50mm2) 5.3 13
SC70 2/0AWG (70mm2) 5.3 13
SC95 3/0AWG (95mm2) 6.4 15
SC120 4/0AWG (120mm2) 6.4 17
