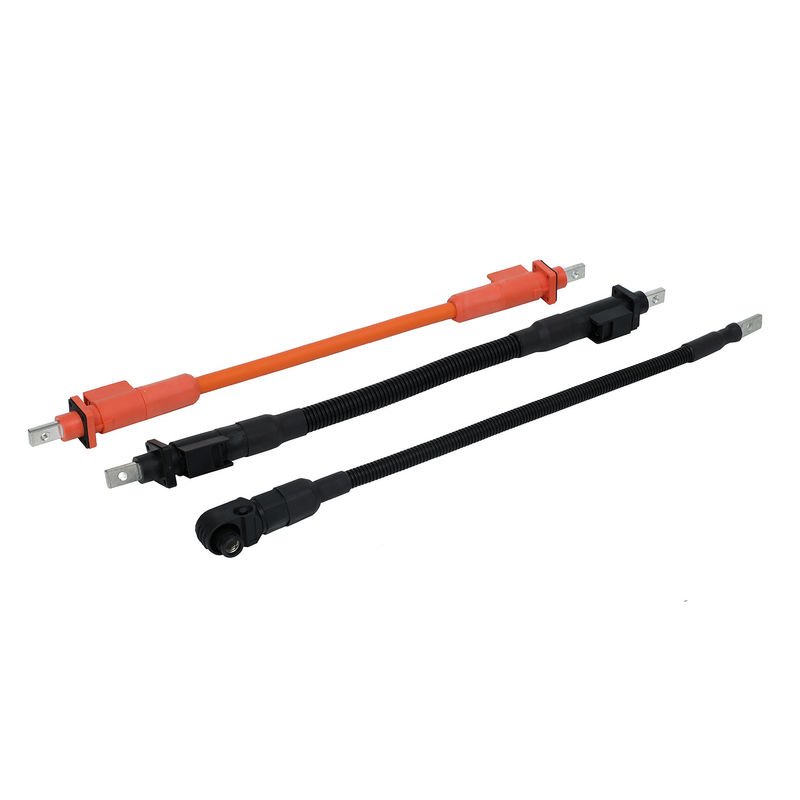

600A 50mm2 70mm2 Solar DC Power Cable NSGAFOU 10MM Plug Socket

Name: 600A 50mm2 70mm2 Solar DC Power Cable NSGAFOU 10MM Plug Socket
Brand: XSD Cable
SKU: Solar Cable Assembly
Rating: 4.5 (164 reviews)

Product Details

Place of Origin: Guangdong,China

Brand Name: XSD Cable

Certification: UL,CE,ISO:9001,VDE

Model Number: Solar Cable Assembly

Payment & Shipping Terms

Minimum Order Quantity: 300sets

Price: Negotiate

Packaging Details: 32*27*17CM

Delivery Time: 7-30days

Payment Terms: T/T

Supply Ability: 200000pcs/month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                70mm2 Solar DC Power Cable, 600A Solar DC Power Cable


Rated Current:	60A~600A	Rated Voltage:	300V~2000V
Operating Temp:	-40℃~125℃	Model:	SC1.5~SC120

Rated Current:	60A~600A
Rated Voltage:	300V~2000V
Operating Temp:	-40℃~125℃
Model:	SC1.5~SC120

600A 50mm2 70mm2 Solar DC Power Cable NSGAFOU 10MM Plug Socket

50mm2 70mm2 Solar DC Power Cable NSGAFOU 10MM Plug Socket

Product Description:

Overview

Product	50mm2 70mm2 Solar DC Power Cable NSGAFOU 10mm Plug Socket
Plug/Socket	Rated Current	60A~600A
	Rated Voltage	300V~2000V
	Operating Temp.	-40℃~125℃
Wire	Model	NSGAFÖU Rubber Wire, UL1015, UL10269, UL11627, UL3321, UL3271, etc.
	Size	1mm2~120mm2
Lug/Terminal	Model	SC1.5~SC120
	Applicable Wire Range	1mm2~120mm2
Crrugated Pipe	Optional
Features	IP67 Waterproof, Flame Retardant, High Temperature Retardant
	Touch Proof, Safe Handling, Durable Design, Reliable Connection
	Quick Lock, Press-to-Release Design, High Pressure Resistance
Application	Solar Energy Storage System(ESS)
	Energy Storage Cabinet, Battery Pack, Battery Storage Tank
	Energy Storage Converter, Power Energy Storage System
Verification	UL, VDE, CCC, ISO 9001, IATF 16949, RoHS, REACH, etc.
OEM	Welcomed

Plug/Socket Model

Plug Datasheet

1. Material

Shell: PA66+30%GF

Electrical Copper Row: Brass, Sliver-plated

2. Electrical Performance

Rated Current: 60A,100A,120A,150A,200A, 350A

Rated Voltage: DC690V

Impulse Withstand Voltage: AC5000V, Leakage≤1mA

Insulation Resistance: DC1000V, Resistance Value≥1000MΩ

3. Operating Environment

Operating Temp.: -40℃~125℃

Operating Humidity: 5%~95%RH

Flame Resistance: UL94 V-0

Salt Spray Test: 48H

Socket Datasheet

1. Material

Shell: PA66+30%GF

Electrical Copper Row: Brass, Sliver-plated

2. Electrical Performance

Rated Current: 100A, 150A, 200A, 250A, 350A

Rated Voltage: DC690V

Impulse Withstand Voltage: AC5000V, Leakage≤1mA

Insulation Resistance: DC2500V, Resistance Value≥2000MΩ

3. Operating Environment

Operating Temp.: -40℃~125℃

Operating Humidity: 5%~95%RH

Flame Resistance: UL94 V-0

Salt Spray Test: 48H

Packing and Shipping:

Packaging and Shipping

Our Solar Cable Assembly is carefully packaged to ensure safe and secure delivery to our customers. Each assembly is wrapped in protective material to prevent any damage during transit. Additionally, the cables are coiled and secured with cable ties to prevent tangling.

We offer different packaging options to meet the specific needs of our customers. Our standard packaging includes strong cardboard boxes with foam inserts to provide maximum protection. For larger orders, we also offer pallet packaging to ensure safe delivery of multiple assemblies.

For shipping, we work with reputable carriers to ensure prompt and reliable delivery. We offer both domestic and international shipping options to accommodate our global customers. Our team carefully tracks each shipment to ensure timely arrival and provides tracking information to our customers.

Upon delivery, our customers can expect their Solar Cable Assembly to be in perfect condition and ready for immediate use. We take great care in packaging and shipping our products to guarantee customer satisfaction.
