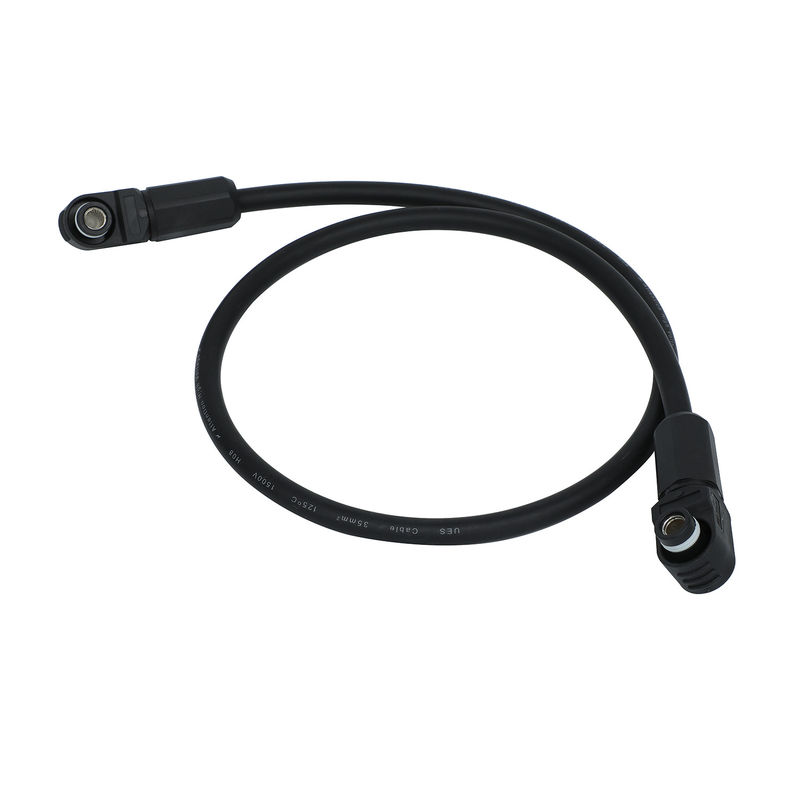

OEM Energy Storage Cabinet Connection Cable 35mm2 250A
Product Description:
Overview
| Product |
OEM Energy Storage Cabinet Connection Cable 35mm2 250A |
| Plug/Socket |
Rated Current |
60A~600A |
| Rated Voltage |
300V~2000V |
| Operating Temp. |
-40℃~125℃ |
| Wire |
Model |
NSGAFÖU Rubber Wire, UL1015, UL10269, UL11627, UL3321, UL3271, etc. |
| Size |
1mm2~120mm2 |
| Lug/Terminal |
Model |
SC1.5~SC120 |
| Applicable Wire Range |
1mm2~120mm2 |
| Crrugated Pipe |
Optional |
| Features |
IP67 Waterproof, Flame Retardant, High Temperature Retardant |
| Touch Proof, Safe Handling, Durable Design, Reliable Connection |
| Quick Lock, Press-to-Release Design, High Pressure Resistance |
| Application |
Solar Energy Storage System(ESS) |
| Energy Storage Cabinet, Battery Pack, Battery Storage Tank |
| Energy Storage Converter, Power Energy Storage System |
| Verification |
UL, VDE, CCC, ISO 9001, IATF 16949, RoHS, REACH, etc. |
| OEM |
Welcomed |
Plug/Socket Model
Plug Datasheet
| 1. Material |
| Shell: PA66+30%GF |
| Electrical Copper Row: Brass, Sliver-plated |
| 2. Electrical Performance |
| Rated Current: 60A,100A,120A,150A,200A, 350A |
| Rated Voltage: DC690V |
| Impulse Withstand Voltage: AC5000V, Leakage≤1mA |
| Insulation Resistance: DC1000V, Resistance Value≥1000MΩ |
| 3. Operating Environment |
| Operating Temp.: -40℃~125℃ |
| Operating Humidity: 5%~95%RH |
| Flame Resistance: UL94 V-0 |
| Salt Spray Test: 48H |
Socket Datasheet
| 1. Material |
| Shell: PA66+30%GF |
| Electrical Copper Row: Brass, Sliver-plated |
| 2. Electrical Performance |
| Rated Current: 100A, 150A, 200A, 250A, 350A |
| Rated Voltage: DC690V |
| Impulse Withstand Voltage: AC5000V, Leakage≤1mA |
| Insulation Resistance: DC2500V, Resistance Value≥2000MΩ |
| 3. Operating Environment |
| Operating Temp.: -40℃~125℃ |
| Operating Humidity: 5%~95%RH |
| Flame Resistance: UL94 V-0 |
| Salt Spray Test: 48H |
Wire Model
| Model |
Size |
Rated Voltage |
Rated Temperature |
Insulation |
Conductor |
| UL1015 |
20~2/0AWG |
600V |
105ºC |
PVC |
Tinned or Bare, Stranded or Solid Copper |
| UL10269 |
20~2/0AWG |
1000V |
105ºC |
PVC |
| UL11627 |
20~2/0AWG |
2000V |
105ºC |
PVC |
| UL3271 |
20~2/0AWG |
600V |
125ºC |
XLPE |
| UL3321 |
20~2/0AWG |
600V |
150ºC |
XLPE |
| NSGAFÖU |
1.5~120mm² |
1.8/3KV |
-40~90ºC |
Rubber |
Lug/Terminal Model
| Model |
Wire Range A.W.G.(mm2) |
Stud Size (mm) |
Material |
| Min. |
Max. |
Cu |
| SC1.5 |
12AWG (1.5mm2) |
4.3 |
6.4 |
| SC2.5 |
14AWG (2.5mm2) |
4.3 |
8.4 |
| SC4 |
12AWG (4mm2) |
4.3 |
8.4 |
| SC6 |
10AWG (6mm2) |
4.3 |
8.4 |
| SC10 |
8AWG (10mm2) |
4.3 |
13 |
| SC16 |
6AWG (16mm2) |
4.3 |
10.5 |
| SC25 |
4AWG (25mm2) |
4.2 |
10.5 |
| SC35 |
2AWG (35mm2) |
6.4 |
10.5 |
| SC50 |
1/0AWG (50mm2) |
5.3 |
13 |
| SC70 |
2/0AWG (70mm2) |
5.3 |
13 |
| SC95 |
3/0AWG (95mm2) |
6.4 |
15 |
| SC120 |
4/0AWG (120mm2) |
6.4 |
17 |
Packing and Shipping:
Packaging and Shipping of Solar Cable Assembly
Our Solar Cable Assemblies are carefully packaged to ensure safe delivery to our customers.
Packaging
Each cable assembly is individually packaged in a poly bag to protect it from dust and damage during transportation.
Multiple cable assemblies are then placed in a sturdy cardboard box with sufficient padding to prevent any movement during shipping.
The box is labeled with the product name, quantity, and any other necessary information.
Shipping
We offer various shipping options to meet the specific needs of our customers.
For small orders, we ship via express couriers such as DHL, UPS, and FedEx.
For larger orders, we use air or sea freight, depending on the destination and urgency of the order.
We work closely with our shipping partners to ensure timely and efficient delivery of our products.
Customers are responsible for any applicable customs fees and taxes.
Please contact us for further information on shipping options and rates.
