Highlight:
                                                                                                                                                                                Energy Storage Cable VDE, Energy Storage Cable  35mm2


Rated Current:	60A~600A	Rated Voltage:	300V~2000V
Operating Temp:	-40℃~125℃	Model:	NSGAFÖU Rubber Wire, UL1015, UL10269, UL11627, UL3321, UL3271, Etc

Rated Current:	60A~600A
Rated Voltage:	300V~2000V
Operating Temp:	-40℃~125℃
Model:	NSGAFÖU Rubber Wire, UL1015, UL10269, UL11627, UL3321, UL3271, Etc

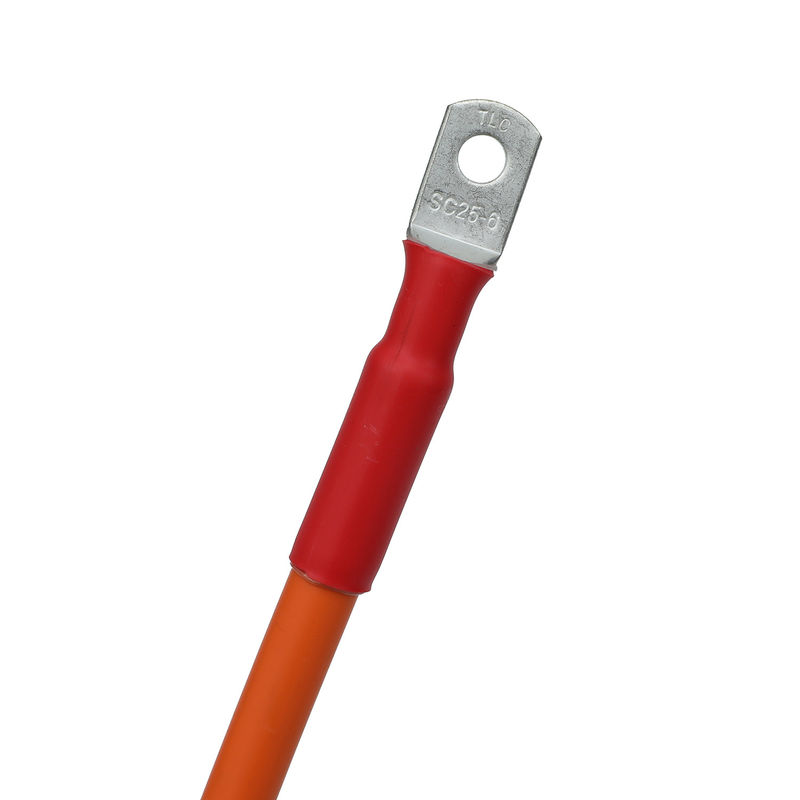

Custom Energy Storage Cable VDE UL Certified PV 2KV 35mm2

Custom VDE UL Certified PV 2KV 35mm2 Energy Storage Cable

Product Description:

Overview

Product	Custom VDE UL Certified PV 2KV 35mm2 Energy Storage Cable
Plug/Socket	Rated Current	60A~600A
	Rated Voltage	300V~2000V
	Operating Temp.	-40℃~125℃
Wire	Model	NSGAFÖU Rubber Wire, UL1015, UL10269, UL11627, UL3321, UL3271, etc.
	Size	1mm2~120mm2
Lug/Terminal	Model	SC1.5~SC120
	Applicable Wire Range	1mm2~120mm2
Crrugated Pipe	Optional
Features	IP67 Waterproof, Flame Retardant, High Temperature Retardant
	Touch Proof, Safe Handling, Durable Design, Reliable Connection
	Quick Lock, Press-to-Release Design, High Pressure Resistance
Application	Solar Energy Storage System(ESS)
	Energy Storage Cabinet, Battery Pack, Battery Storage Tank
	Energy Storage Converter, Power Energy Storage System
Verification	UL, VDE, CCC, ISO 9001, IATF 16949, RoHS, REACH, etc.
OEM	Welcomed

Plug/Socket Model

Plug Datasheet

1. Material

Shell: PA66+30%GF

Electrical Copper Row: Brass, Sliver-plated

2. Electrical Performance

Rated Current: 60A,100A,120A,150A,200A, 350A

Rated Voltage: DC690V

Impulse Withstand Voltage: AC5000V, Leakage≤1mA

Insulation Resistance: DC1000V, Resistance Value≥1000MΩ

3. Operating Environment

Operating Temp.: -40℃~125℃

Operating Humidity: 5%~95%RH

Flame Resistance: UL94 V-0

Salt Spray Test: 48H

Socket Datasheet

1. Material

Shell: PA66+30%GF

Electrical Copper Row: Brass, Sliver-plated

2. Electrical Performance

Rated Current: 100A, 150A, 200A, 250A, 350A

Rated Voltage: DC690V

Impulse Withstand Voltage: AC5000V, Leakage≤1mA

Insulation Resistance: DC2500V, Resistance Value≥2000MΩ

3. Operating Environment

Operating Temp.: -40℃~125℃

Operating Humidity: 5%~95%RH

Flame Resistance: UL94 V-0

Salt Spray Test: 48H

Wire Model

Model	Size	Rated Voltage	Rated Temperature	Insulation	Conductor
UL1015	20~2/0AWG	600V	105ºC	PVC	Tinned or Bare, Stranded or Solid Copper
UL10269	20~2/0AWG	1000V	105ºC	PVC
UL11627	20~2/0AWG	2000V	105ºC	PVC
UL3271	20~2/0AWG	600V	125ºC	XLPE
UL3321	20~2/0AWG	600V	150ºC	XLPE
NSGAFÖU	1.5~120mm²	1.8/3KV	-40~90ºC	Rubber

Packing and Shipping:

Solar Cable Assembly Packaging and Shipping

Each solar cable assembly is carefully packaged to ensure safe transportation and delivery to our customers. The packaging process includes the following steps:

All components of the solar cable assembly are securely wrapped and placed in a sturdy and durable box.
The box is then labeled with the product name, quantity, and any special handling instructions.
The box is sealed and reinforced with tape to prevent any damage during transit.

Once packaged, the solar cable assembly is ready for shipping. We offer a variety of shipping options to meet our customers' needs, including:

Standard ground shipping
Expedited shipping
International shipping

We work with trusted shipping partners to ensure timely and secure delivery of our products. Customers can track their orders and receive updates on their shipment status through our online portal.

At Solar Cable Assembly, we take great care in packaging and shipping our products to ensure they arrive in perfect condition. Your satisfaction is our top priority.
