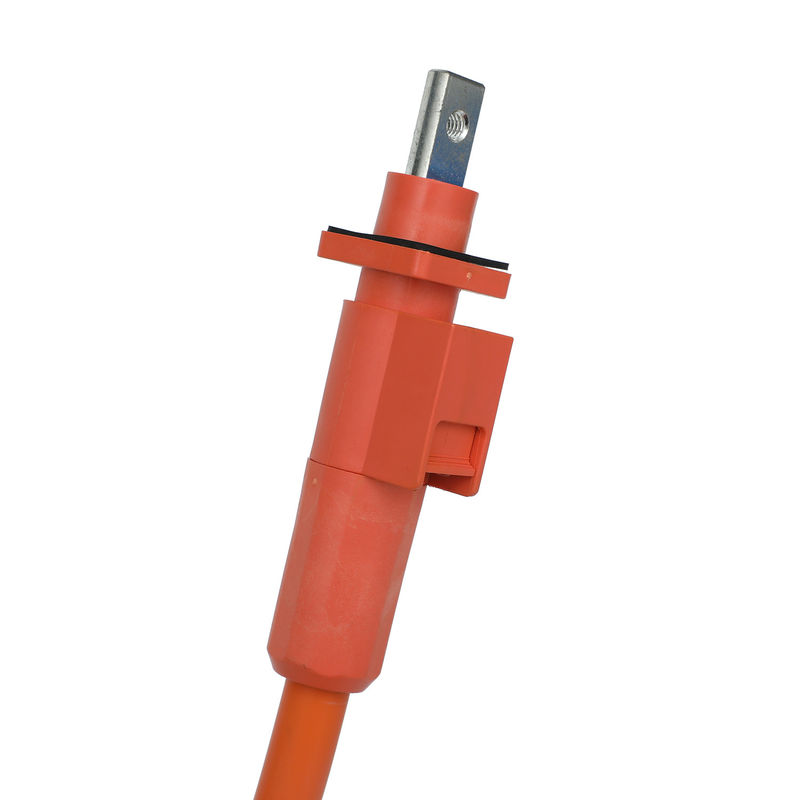

Efficiency Solar Cable Assembly SC1.5~SC120 Flame Retardant

Name: Efficiency Solar Cable Assembly SC1.5~SC120 Flame Retardant
Brand: XSD Cable
SKU: Solar Cable Assembly
Rating: 4.8 (135 reviews)

Product Details

Place of Origin: Guangdong,China

Brand Name: XSD Cable

Certification: UL,CE,ISO:9001,VDE

Model Number: Solar Cable Assembly

Payment & Shipping Terms

Minimum Order Quantity: 300sets

Price: Negotiate

Packaging Details: 32*27*17CM

Delivery Time: 7-30days

Payment Terms: T/T

Supply Ability: 200000pcs/month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                Efficiency Solar Cable Assembly, Flame Retardant Solar Cable Assembly, SC120 Solar Cable Assembly


Rated Current:	60A~600A	Model:	SC1.5~SC120
Size:	1mm2~120mm2	Applicable Wire Range:	1mm2~120mm2

Rated Current:	60A~600A
Model:	SC1.5~SC120
Size:	1mm2~120mm2
Applicable Wire Range:	1mm2~120mm2

Efficiency Solar Cable Assembly SC1.5~SC120 Flame Retardant

Maximize Your Solar Efficiency With Our Solar Cable Assembly

Product Description:

Solar Cable Assembly - Product Overview

Introduction

The Solar Cable Assembly is a vital component in any solar power system. It connects the solar panels to the inverter, allowing the generated energy to be used for various applications. Made from high-quality materials and designed to withstand extreme conditions, our Solar Cable Assembly ensures efficient and reliable power transmission.

Product Features

The Solar Cable Assembly is available in different sizes and specifications to meet the diverse needs of our customers. The following are the key features of our product:

Overview

Product	6mm 120A Waterproof Connector Plug to Plug Solar Harness
Plug/Socket	Rated Current	60A~600A
	Rated Voltage	300V~2000V
	Operating Temp.	-40℃~125℃
Wire	Model	NSGAFÖU Rubber Wire, UL1015, UL10269, UL11627, UL3321, UL3271, etc.
	Size	1mm2~120mm2
Lug/Terminal	Model	SC1.5~SC120
	Applicable Wire Range	1mm2~120mm2
Crrugated Pipe	Optional
Features	IP67 Waterproof, Flame Retardant, High Temperature Retardant
	Touch Proof, Safe Handling, Durable Design, Reliable Connection
	Quick Lock, Press-to-Release Design, High Pressure Resistance
Application	Solar Energy Storage System(ESS)
	Energy Storage Cabinet, Battery Pack, Battery Storage Tank
	Energy Storage Converter, Power Energy Storage System
Verification	UL, VDE, CCC, ISO 9001, IATF 16949, RoHS, REACH, etc.
OEM	Welcomed

Technical Parameters:

Plug Datasheet

1. Material

Shell: PA66+30%GF

Electrical Copper Row: Brass, Sliver-plated

2. Electrical Performance

Rated Current: 60A,100A,120A,150A,200A, 350A

Rated Voltage: DC690V

Impulse Withstand Voltage: AC5000V, Leakage≤1mA

Insulation Resistance: DC1000V, Resistance Value≥1000MΩ

3. Operating Environment

Operating Temp.: -40℃~125℃

Operating Humidity: 5%~95%RH

Flame Resistance: UL94 V-0

Salt Spray Test: 48H

Socket Datasheet

1. Material

Shell: PA66+30%GF

Electrical Copper Row: Brass, Sliver-plated

2. Electrical Performance

Rated Current: 100A, 150A, 200A, 250A, 350A

Rated Voltage: DC690V

Impulse Withstand Voltage: AC5000V, Leakage≤1mA

Insulation Resistance: DC2500V, Resistance Value≥2000MΩ

3. Operating Environment

Operating Temp.: -40℃~125℃

Operating Humidity: 5%~95%RH

Flame Resistance: UL94 V-0

Salt Spray Test: 48H

Wire Model

Model	Size	Rated Voltage	Rated Temperature	Insulation	Conductor
UL1015	20~2/0AWG	600V	105ºC	PVC	Tinned or Bare, Stranded or Solid Copper
UL10269	20~2/0AWG	1000V	105ºC	PVC
UL11627	20~2/0AWG	2000V	105ºC	PVC
UL3271	20~2/0AWG	600V	125ºC	XLPE
UL3321	20~2/0AWG	600V	150ºC	XLPE
NSGAFÖU	1.5~120mm²	1.8/3KV	-40~90ºC	Rubber

Lug/Terminal Model

Model	Wire Range A.W.G.(mm2)	Stud Size (mm)		Material
Model	Wire Range A.W.G.(mm2)	Min.	Max.	Cu
SC1.5	12AWG (1.5mm2)	4.3	6.4
SC2.5	14AWG (2.5mm2)	4.3	8.4
SC4	12AWG (4mm2)	4.3	8.4
SC6	10AWG (6mm2)	4.3	8.4
SC10	8AWG (10mm2)	4.3	13
SC16	6AWG (16mm2)	4.3	10.5
SC25	4AWG (25mm2)	4.2	10.5
SC35	2AWG (35mm2)	6.4	10.5
SC50	1/0AWG (50mm2)	5.3	13
SC70	2/0AWG (70mm2)	5.3	13
SC95	3/0AWG (95mm2)	6.4	15
SC120	4/0AWG (120mm2)	6.4	17

Packing and Shipping:

Packaging and Shipping

The Solar Cable Assembly is packaged and shipped according to industry standards to ensure safe and secure delivery to our customers. The following packaging and shipping methods are used for this product:

Packaging

The Solar Cable Assembly is first wrapped in a layer of protective material to prevent any damage during transportation.
It is then placed in a sturdy cardboard box with additional padding to provide extra protection.
The box is sealed and labeled with the product name, quantity, and any necessary handling instructions.

Shipping

We offer various shipping options to our customers, including:

Standard shipping: The Solar Cable Assembly is shipped via ground transportation and typically takes 3-5 business days to arrive.
Expedited shipping: Customers can choose expedited shipping for faster delivery, with options such as 2-day or overnight shipping.
International shipping: We also offer international shipping for our customers located outside of the United States.

Our team carefully monitors all shipments to ensure timely delivery and provides tracking information to customers so they can track their package's progress. We also offer the option for customers to pick up their order directly from our warehouse if they prefer.
