Find The Best Solar Cable Assembly For Your Solar Power Needs
Product Description:
| Product |

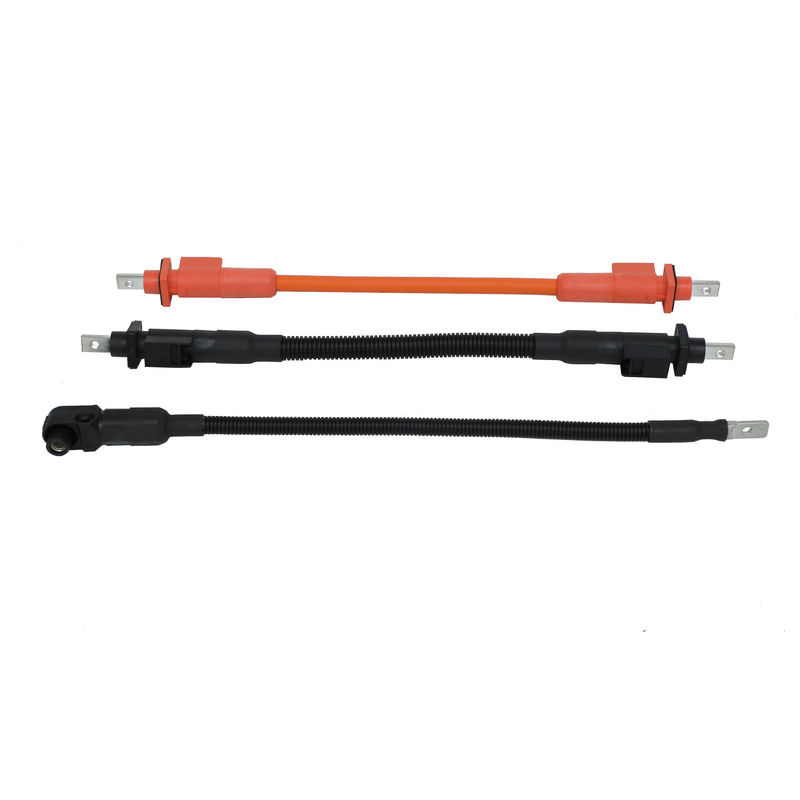

8mm 10mm Waterproof Connector Energy Storage Assembly Cable |
| Plug/Socket |
Rated Current |
60A~600A |
| Rated Voltage |
300V~2000V |
| Operating Temp. |
-40℃~125℃ |
| Wire |
Model |
NSGAFÖU Rubber Wire, UL1015, UL10269, UL11627, UL3321, UL3271, etc. |
| Size |
1mm2~120mm2 |
| Lug/Terminal |
Model |
SC1.5~SC120 |
| Applicable Wire Range |
1mm2~120mm2 |
| Crrugated Pipe |
Optional |
| Features |
IP67 Waterproof, Flame Retardant, High Temperature Retardant |
| Touch Proof, Safe Handling, Durable Design, Reliable Connection |
| Quick Lock, Press-to-Release Design, High Pressure Resistance |
| Application |
Solar Energy Storage System(ESS) |
| Energy Storage Cabinet, Battery Pack, Battery Storage Tank |
| Energy Storage Converter, Power Energy Storage System |
| Verification |
UL, VDE, CCC, ISO 9001, IATF 16949, RoHS, REACH, etc. |
| OEM |
Welcomed |
Plug/Socket Model
Plug Datasheet
| 1. Material |
| Shell: PA66+30%GF |
| Electrical Copper Row: Brass, Sliver-plated |
| 2. Electrical Performance |
| Rated Current: 60A,100A,120A,150A,200A, 350A |
| Rated Voltage: DC690V |
| Impulse Withstand Voltage: AC5000V, Leakage≤1mA |
| Insulation Resistance: DC1000V, Resistance Value≥1000MΩ |
| 3. Operating Environment |
| Operating Temp.: -40℃~125℃ |
| Operating Humidity: 5%~95%RH |
| Flame Resistance: UL94 V-0 |
| Salt Spray Test: 48H |
Socket Datasheet
| 1. Material |
| Shell: PA66+30%GF |
| Electrical Copper Row: Brass, Sliver-plated |
| 2. Electrical Performance |
| Rated Current: 100A, 150A, 200A, 250A, 350A |
| Rated Voltage: DC690V |
| Impulse Withstand Voltage: AC5000V, Leakage≤1mA |
| Insulation Resistance: DC2500V, Resistance Value≥2000MΩ |
| 3. Operating Environment |
| Operating Temp.: -40℃~125℃ |
| Operating Humidity: 5%~95%RH |
| Flame Resistance: UL94 V-0 |
| Salt Spray Test: 48H |
Packing and Shipping:
Packaging and Shipping of Solar Cable Assembly
Our Solar Cable Assembly is carefully packaged and shipped to ensure its safe arrival at your doorstep. The packaging process is done with utmost care and attention to ensure that the product remains in perfect condition during transportation.
The standard packaging for our Solar Cable Assembly includes a sturdy cardboard box with appropriate cushioning material to prevent any damage during transit. The cables are coiled and secured with zip ties to prevent tangling and ensure easy handling.
For larger orders, we use pallets and shrink-wrapping to secure the products and prevent any movement during shipping. Additionally, all orders are shipped with a packing slip and invoice for your convenience.
We offer various shipping methods to cater to your needs, including air, sea, and ground transportation. Our team works closely with reliable shipping carriers to ensure timely and efficient delivery of your order.
For international orders, we comply with all required customs regulations and provide all necessary documentation to ensure smooth customs clearance.
Thank you for choosing our Solar Cable Assembly. We strive to provide our customers with the best quality products and hassle-free shipping experience.
