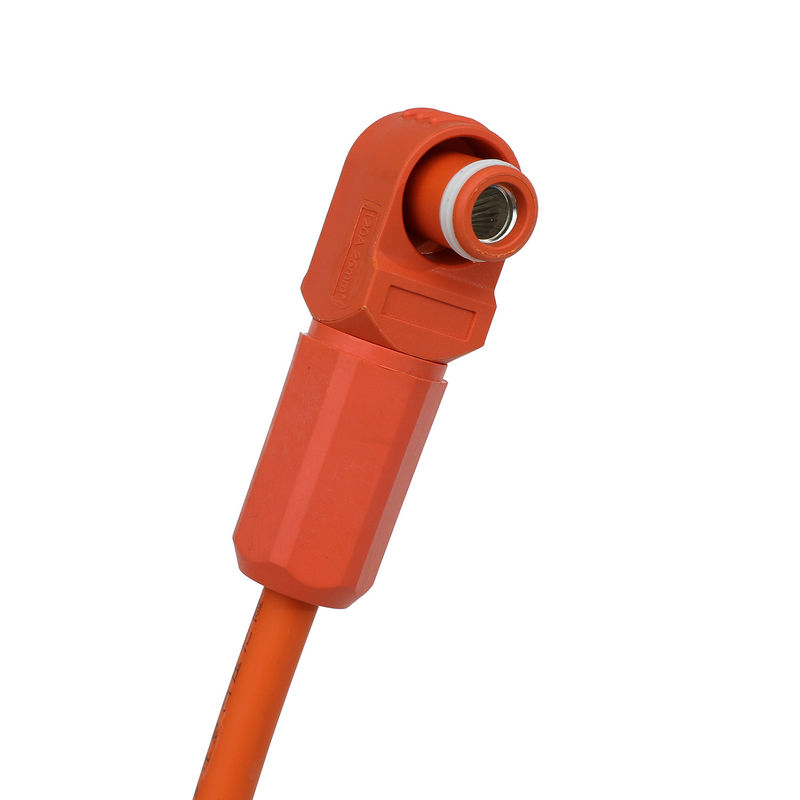

1.8/3KV Connection Cable 120mm2 600A For Energy Storage Tank

Name: 1.8/3KV Connection Cable 120mm2 600A For Energy Storage Tank
Brand: XSD Cable
SKU: Solar Cable Assembly
Rating: 4.9 (169 reviews)

Product Details

Place of Origin: Guangdong,China

Brand Name: XSD Cable

Certification: UL,CE,ISO:9001,VDE

Model Number: Solar Cable Assembly

Payment & Shipping Terms

Minimum Order Quantity: 300sets

Price: Negotiate

Packaging Details: 32*27*17CM

Delivery Time: 7-30days

Payment Terms: T/T

Supply Ability: 200000pcs/month

Get Best Price

Product Details

Product Description

Highlight:
                                                Connection Cable 120mm2, 600A Connection Cable


1.8/3KV Connection Cable 120mm2 600A For Energy Storage Tank

Product Description:

Product	1.8/3KV Connection Cable 120mm2 600A for Energy Storage Tank
Plug/Socket	Rated Current	60A~600A
	Rated Voltage	300V~2000V
	Operating Temp.	-40℃~125℃
Wire	Model	NSGAFÖU Rubber Wire, UL1015, UL10269, UL11627, UL3321, UL3271, etc.
	Size	1mm2~120mm2
Lug/Terminal	Model	SC1.5~SC120
	Applicable Wire Range	1mm2~120mm2
Crrugated Pipe	Optional
Features	IP67 Waterproof, Flame Retardant, High Temperature Retardant
	Touch Proof, Safe Handling, Durable Design, Reliable Connection
	Quick Lock, Press-to-Release Design, High Pressure Resistance
Application	Solar Energy Storage System(ESS)
	Energy Storage Cabinet, Battery Pack, Battery Storage Tank
	Energy Storage Converter, Power Energy Storage System
Verification	UL, VDE, CCC, ISO 9001, IATF 16949, RoHS, REACH, etc.
OEM	Welcomed

Plug Datasheet

1. Material

Shell: PA66+30%GF

Electrical Copper Row: Brass, Sliver-plated

2. Electrical Performance

Rated Current: 60A,100A,120A,150A,200A, 350A

Rated Voltage: DC690V

Impulse Withstand Voltage: AC5000V, Leakage≤1mA

Insulation Resistance: DC1000V, Resistance Value≥1000MΩ

3. Operating Environment

Operating Temp.: -40℃~125℃

Operating Humidity: 5%~95%RH

Flame Resistance: UL94 V-0

Salt Spray Test: 48H

Socket Datasheet

1. Material

Shell: PA66+30%GF

Electrical Copper Row: Brass, Sliver-plated

2. Electrical Performance

Rated Current: 100A, 150A, 200A, 250A, 350A

Rated Voltage: DC690V

Impulse Withstand Voltage: AC5000V, Leakage≤1mA

Insulation Resistance: DC2500V, Resistance Value≥2000MΩ

3. Operating Environment

Operating Temp.: -40℃~125℃

Operating Humidity: 5%~95%RH

Flame Resistance: UL94 V-0

Salt Spray Test: 48H

Packing and Shipping:

Packaging and Shipping of Solar Cable Assembly

Our Solar Cable Assembly is packaged and shipped with utmost care to ensure safe delivery to our customers. The packaging process includes the following steps:

Each cable assembly is neatly coiled and secured with cable ties to prevent tangles and damage during transportation.
The cable assembly is then placed in a sturdy corrugated cardboard box, which is designed to withstand rough handling and protect the contents inside.
To further protect the cable assembly, it is wrapped with bubble wrap or foam and placed in the box with sufficient padding.
The box is sealed with strong packing tape to prevent any tampering or opening during transit.
Finally, the box is labeled with all necessary information, including product name, quantity, and shipping address.

We offer various shipping options for our Solar Cable Assembly, including express, standard, and economy shipping. Our shipping team carefully selects the most suitable option based on the destination and urgency of the order.

With our efficient packaging and shipping process, you can be assured that your Solar Cable Assembly will arrive in perfect condition and on time.
