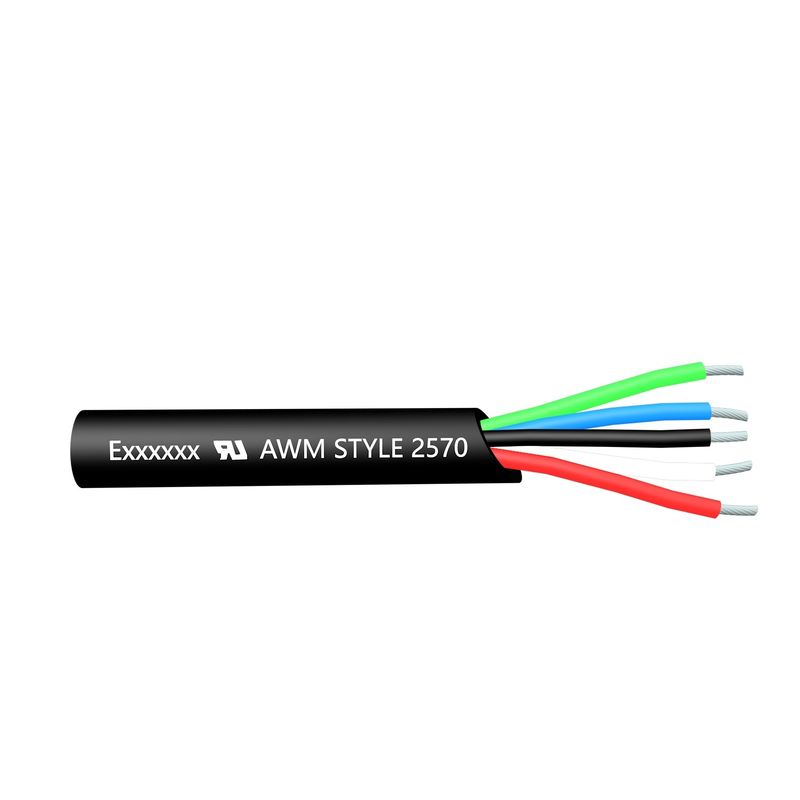

AWM 2570 80℃ 600V PVC Multi Conductor Cable With UL CUL RoHS
Product Description:
Single Conductor Wire - High-Quality Copper Wire for General Purpose Applications
Single Conductor Wire, also known as Single-Wire Cable or Single-Conducting Wire, is a type of electrical cable that consists of a single conducting wire made of high-quality copper. It is designed for use in a variety of general purpose applications where a single conducting wire is required.
Product Overview
Our Single Conductor Wire is made from pure copper, providing excellent electrical conductivity and low resistance. It is available in a solid stranding, meaning the copper wire is made of a single, unbroken strand. This ensures a more stable and reliable electrical connection.
Technical Parameters:
| Conductor |
Insulation |
Jacket |
Max. Cond. Resistance at 20°C
(Ω/km) |
| No. of Cores |
AWG |
Construction
(No./mm) |
Diameter
(mm) |
Thickness
(mm) |
Diameter
(mm) |
Thickness
(mm) |
Diameter
(mm) |
| 2 |
26 |
7/0.16 |
0.48 |
0.76 |
2.1 |
0.76 |
5.9 |
150 |
| 24 |
11/0.16 |
0.61 |
2.2 |
6.1 |
94.2 |
| 22 |
17/0.16 |
0.76 |
2.4 |
6.5 |
59.4 |
| 20 |
26/0.16 |
0.94 |
2.6 |
6.9 |
36.7 |
| 3 |
26 |
7/0.16 |
0.48 |
2.1 |
6.2 |
150 |
| 24 |
11/0.16 |
0.61 |
2.2 |
6.4 |
94.2 |
| 22 |
17/0.16 |
0.76 |
2.4 |
6.8 |
59.4 |
| 20 |
26/0.16 |
0.94 |
2.6 |
7.3 |
36.7 |
| 4 |
28 |
7/0.127 |
0.38 |
2 |
6.6 |
239 |
| 26 |
7/0.16 |
0.48 |
2.1 |
6.7 |
150 |
| 5 |
28 |
7/0.127 |
0.38 |
2 |
7.2 |
239 |
| 26 |
7/0.16 |
0.48 |
2.1 |
7.5 |
150 |
| ※The above datasheet is for reference only, please refer to the final specification. |
Packing and Shipping:
Packaging and Shipping for Single Conductor Wire
At our company, we take great care in packaging and shipping our Single Conductor Wire to ensure that it reaches our customers in perfect condition. We use high-quality materials and follow strict procedures to guarantee safe and secure delivery.
Packaging
Our Single Conductor Wire is carefully packaged to prevent any damage during transit. Each wire is individually wrapped in protective material and then placed in a sturdy cardboard box. The box is then sealed with tape and labeled with the product information and handling instructions.
We also offer custom packaging options for our customers, such as spooling the wire onto reels or cutting it to specific lengths. This ensures that the wire is ready for use upon arrival and minimizes any additional handling or processing.
Shipping
We work with reputable shipping companies to ensure timely and reliable delivery of our Single Conductor Wire. Our team carefully packs and prepares each order for shipment, taking into consideration the weight, size, and fragility of the package.
We offer various shipping options to meet our customers' needs, including standard ground shipping, expedited shipping, and international shipping. Our team will work with you to select the best shipping method based on your location and delivery timeline.
Once your order has been shipped, we will provide you with a tracking number so you can monitor its progress and estimated delivery date. We also offer insurance for our shipments to provide extra protection against any unforeseen events during transit.
At our company, we strive to provide the best packaging and shipping services for our Single Conductor Wire. Our goal is to ensure that our customers receive their orders in perfect condition and on time, every time.
