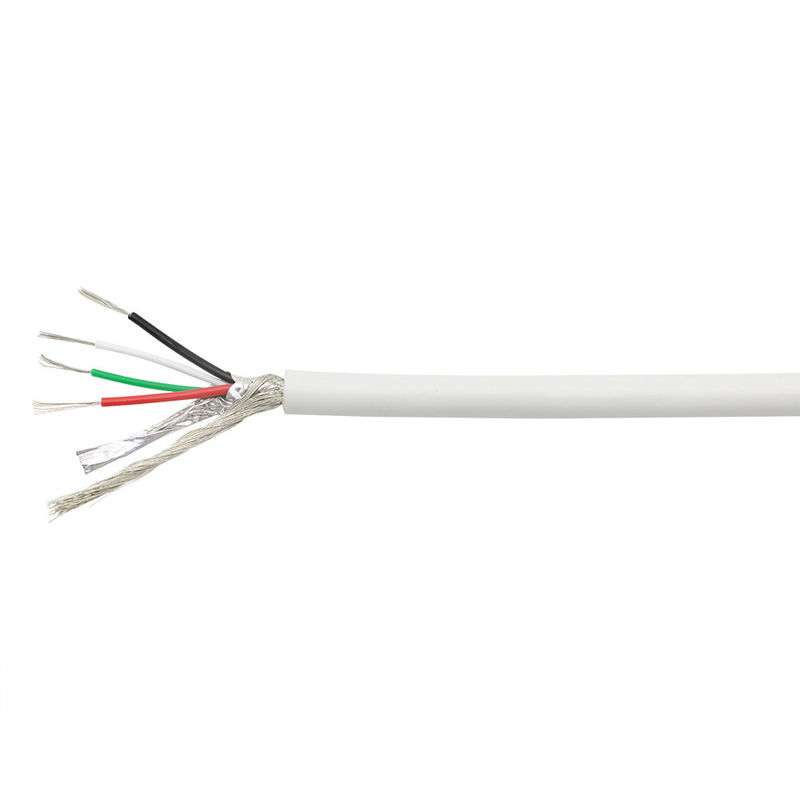

UL2547 80℃ PVC Multi Core Signal Shielded Cable Audio Cable
Rated Voltage: 300V
Rated Temperature: 80ºC
Insulation Material: SR-PVC
Jacket Material: PVC
Optional: Spiral Shielding
Conductor: Tinned or Bare, Stranded or Solid Copper
Reference Standard: UL758, UL1581, C22.2 No.210
Passes UL VW-1 & CSA FT1 vertical flame test.
Uniform insulation thickness of wire to ensure easy stripping and cutting.
For internal wiring of electronic and electrical equipment and appliance, Computer, Audio and Video, Electronic Circuits.
Cable Assembly Manufacture.pdf
Cable Assembly Supplier.pdf
| onductor |
Insulation |
Spiral Shield |
Jacket |
Max. Cond. Resistance at 20°C
(Ω/km) |
| NO.of Cores |
AWG |
Diameter
(mm) |
Thickness
(mm) |
Diameter
(mm) |
Thickness
(mm) |
Diameter
(mm) |
| 2 |
30 |
7/0.10 |
0.26 |
0.82 |
44/0.10 |
2.64 |
381 |
| 2 |
28 |
7/0.127 |
0.26 |
0.90 |
48/0.10 |
2.80 |
239 |
| 2 |
26 |
7/0.16 |
0.26 |
1.00 |
53/0.10 |
3.00 |
150 |
| 2 |
24 |
11/0.16 |
0.26 |
1.13 |
60/0.10 |
3.26 |
94.2 |
| 2 |
22 |
17/0.16 |
0.26 |
1.28 |
57/0.12 |
3.60 |
59.4 |
| 2 |
20 |
26/0.16 |
0.26 |
1.46 |
63/0.12 |
3.96 |
36.7 |
| 2 |
18 |
41/0.16 |
0.26 |
1.70 |
73/0.12 |
4.44 |
23.2 |
| 2 |
16 |
26/0.254 |
0.26 |
2.02 |
87/0.12 |
5.08 |
14.6 |
| 3 |
30 |
7/0.10 |
0.26 |
0.82 |
52/0.10 |
2.77 |
381 |
| 3 |
28 |
7/0.127 |
0.26 |
0.90 |
56/0.10 |
2.94 |
239 |
| 3 |
26 |
7/0.16 |
0.26 |
1.00 |
62/0.10 |
2.90 |
150 |
| 3 |
24 |
11/0.16 |
0.26 |
1.13 |
61/0.12 |
3.43 |
94.2 |
| 3 |
22 |
17/0.16 |
0.26 |
1.28 |
67/0.12 |
3.76 |
59.4 |
| 3 |
20 |
26/0.16 |
0.26 |
1.46 |
75/0.12 |
4.14 |
36.7 |
| 3 |
18 |
41/0.16 |
0.35 |
1.88 |
93/0.12 |
4.66 |
23.2 |
| 3 |
16 |
26/0.254 |
0.35 |
2.19 |
110/0.12 |
5.35 |
14.6 |
