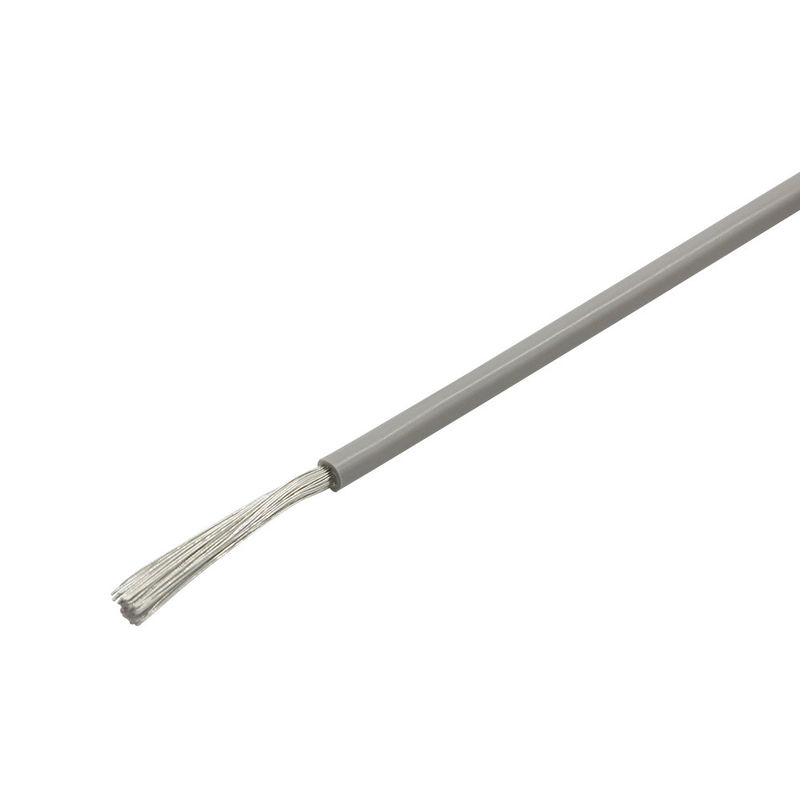

UL1571 PVC Hookup Wire Lead Wire AWM Wire

Product Details

Place of Origin: Guangdong,China

Brand Name: XSD Cable

Certification: UL,CE,ISO:9001

Model Number: Wiring Harness Cables

Payment & Shipping Terms

Minimum Order Quantity: 3050Meters

Price: Negotiate

Packaging Details: 31*31*15CM

Delivery Time: 7-14days

Payment Terms: T/T

Supply Ability: 1000000pcs/month

Get Best Price
Highlight:
Rated Voltage:
30V
Rated Temperature:
80ºC
Insulation Material:
SR-PVC
Reference Standard:
UL758, UL1581, C22.2 No.210
Application:
Automotive/ Industrial/ Medical/ Home Appliance
Conductor:
Tinned Or Bare, Stranded Or Solid Copper
Rated Voltage:
30V
Rated Temperature:
80ºC
Insulation Material:
SR-PVC
Reference Standard:
UL758, UL1581, C22.2 No.210
Application:
Automotive/ Industrial/ Medical/ Home Appliance
Conductor:
Tinned Or Bare, Stranded Or Solid Copper
UL1571 PVC Hookup Wire Lead Wire AWM Wire


Features:

UL1571 Single Core Copper 26AWG SRPVC Blue UL Hookup Wire

  • Rated Voltage: 30V

  • Rated Temperature: 80ºC

  • Insulation Material: SR-PVC

  • Conductor: Tinned or Bare, Stranded or Solid Copper

  • Reference Standard: UL758, UL1581, C22.2 No.210

  • Passes UL VW-1 & CSA FT1 vertical flame test.

  • Uniform insulation thickness of wire to ensure easy stripping and cutting.

  • For internal wiring of electronic and electrical equipment and appliance, wiring circuits, control circuits, etc.



Technical Parameters:

ConductorInsulationMax. Cond. Resistance at 20°C
(Ω/km)
AWGConstruction
(No./mm)
Diameter
(mm)
Thickness
(mm)
Diameter
(mm)
327/0.080.240.180.60597
307/0.100.300.190.70381
287/0.1270.380.210.80239
267/0.160.480.251.00150
2411/0.160.610.251.1094.2
2217/0.160.760.271.3059.4
2026/0.160.940.281.5036.7
1841/0.161.180.311.8023.2
※The above datasheet is for reference only, please refer to the final specification.
UL1571 PVC Hookup Wire Lead Wire AWM Wire 0UL1571 PVC Hookup Wire Lead Wire AWM Wire 1

Packing and Shipping:

Packaging and Shipping for Wiring Harness Cables

Our Wiring Harness Cables are carefully packaged and shipped to ensure safe delivery to our customers. Here is a breakdown of our packaging and shipping process:

Packaging:

Each Wiring Harness Cable is individually packaged in a protective plastic bag to prevent any damage during transportation. The plastic bag is then placed in a sturdy cardboard box with sufficient padding to further protect the product.
We also offer customized packaging options for our customers, such as adding a company logo or specific labeling requirements. Please contact our customer service team for more information.

Shipping:

We offer various shipping options to accommodate our customers' needs, including:

  • Standard shipping: Our standard shipping option is the most cost-effective and takes an estimated 5-7 business days for delivery.
  • Expedited shipping: For urgent orders, we offer expedited shipping with a delivery time of 2-3 business days.
  • International shipping: We ship our Wiring Harness Cables worldwide. Please note that international shipping may take longer depending on the destination country's customs and regulations.

Once your order has been shipped, you will receive a tracking number via email to track your package's delivery status.
We take great care in packaging and shipping our Wiring Harness Cables to ensure they arrive at your doorstep in perfect condition. If you have any concerns or issues with your order, please don't hesitate to contact our customer service team for assistance.


.
