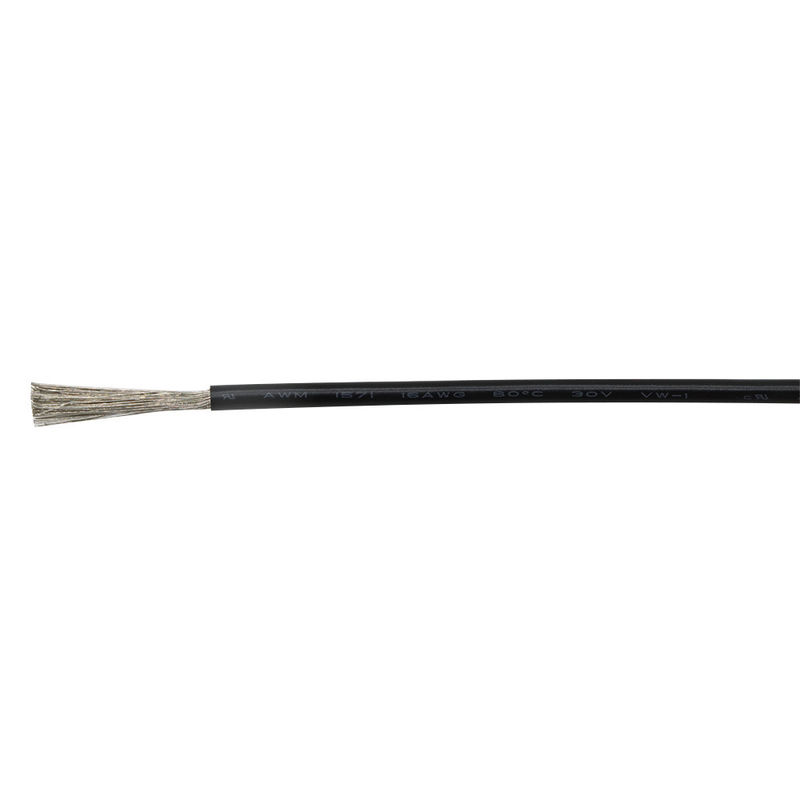

UL AWM 1571 Hookup Wire

Name: UL AWM 1571 Hookup Wire
Brand: XSD Cable
SKU: Single Conductor Wire
Rating: 4.5 (103 reviews)

Product Details

Place of Origin: Guangdong,China

Brand Name: XSD Cable

Certification: UL,CE,ISO:9001

Model Number: Single Conductor Wire

Payment & Shipping Terms

Minimum Order Quantity: 3050Meters

Price: Negotiate

Packaging Details: 31*31*15CM

Delivery Time: 7-14days

Payment Terms: T/T

Supply Ability: 1000000Meter/month

Get Best Price

Product Details

Product Description

Highlight:

Ul Style:	1517	Rated Temperature:	80°C
Stranding:	Solid	Rated Voltage:	30V
Reference Standard:	UL758, UL1581, C22.2 No.210	Application:	General Purpose

Ul Style:	1517
Rated Temperature:	80°C
Stranding:	Solid
Rated Voltage:	30V
Reference Standard:	UL758, UL1581, C22.2 No.210
Application:	General Purpose

UL AWM 1571 Hookup Wire

Product Description:

UL1571 Hook Up Wire SR-PVC Insulated Wire

① Rated temperature: 80ºC

② Rated voltage: 30V

③ Reference Standard: UL758, UL1581, C22.2 No.210

④ Passes UL VW-1 & CSA FT1 vertical flame test.

⑤ Uniform insulation thickness of wire to ensure easy stripping and cutting.

⑥ For internal wiring of electronic and electrical equipment and appliance.
Cable Assembly Manufacture.pdf
Cable Assembly Supplier.pdf

Technical Parameters:

Conductor			Insulation		Max. Cond Resistance at 20°C (Ω/km)
AWG	Construction (No./mm)	Diameter (mm)	Thickness (mm)	Diameter (mm)	Max. Cond Resistance at 20°C (Ω/km)
32	7/0.08	0.24	0.18	0.60	597
30	7/0.10	0.30	0.19	0.70	381
28	7/0.127	0.38	0.21	0.80	239
26	7/0.16	0.48	0.25	1.00	150
24	11/0.16	0.61	0.25	1.10	94.2
22	17/0.16	0.76	0.27	1.30	59.4
20	26/0.16	0.94	0.28	1.50	36.7
18	41/0.16	1.18	0.31	1.80	23.2
