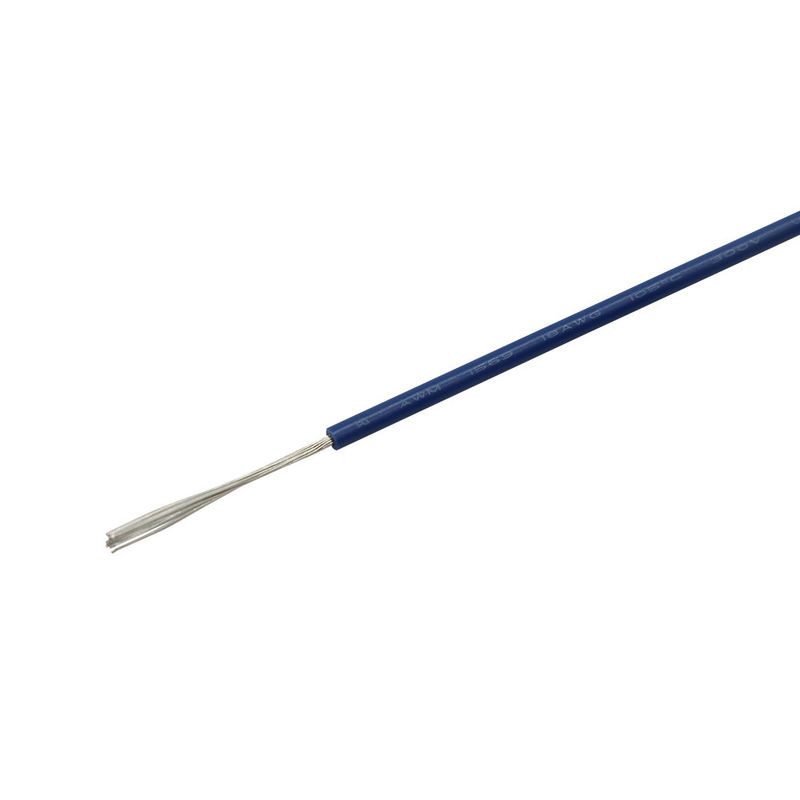

Ul 1569 AWM HooKup Wire
Ul 1569 AWM HooKup Wire
Ul 1569 AWM HooKup Wire
Ul 1569 AWM HooKup Wire

Ul 1569 AWM HooKup Wire

Product Details

Place of Origin: Guangdong,China

Brand Name: XSD Cable

Certification: UL,CE,ISO:9001

Model Number: Single Conductor Wire

Payment & Shipping Terms

Minimum Order Quantity: 3050Meters

Price: Negotiate

Packaging Details: 31*31*15CM

Delivery Time: 7-14days

Payment Terms: T/T

Supply Ability: 1000000Meter/month

Get Best Price

Product Details

Product Description
Highlight:
Conductor:
Copper
Application:
General Purpose
Ul Style:
1569
Rated Voltage:
300V
Rated Temperature:
105°C
Reference Standard:
UL758, UL1581, C22.2 No.210
Conductor:
Copper
Application:
General Purpose
Ul Style:
1569
Rated Voltage:
300V
Rated Temperature:
105°C
Reference Standard:
UL758, UL1581, C22.2 No.210
Ul 1569 AWM HooKup Wire

Product Description:

UL1569 Hookup Wire 22AWG for Internal Wiring of Appliance
Rated Voltage: 300V
Rated Temperature: 105ºC
Insulation Material: PVC
Conductor: Tinned or Bare, Stranded or Solid Copper
Reference Standard: UL758, UL1581, C22.2 No.210
Passes UL VW-1 & CSA FT1 vertical flame test.
Uniform insulation thickness of wire to ensure easy stripping and cutting.
For internal wiring of electronic and electrical equipment and appliance.
Cable Assembly Manufacture.pdf
Cable Assembly Supplier.pdf

Technical Parameters:

ConductorInsulationMax. Cond. Resistance at 20°C
(Ω/km)
AWGConstruction
(No./mm)		Diameter
(mm)		Thickness
(mm)		Diameter
(mm)
307/0.100.300.451.10381
287/0.1270.380.411.20239
267/0.160.480.411.30150
2411/0.160.610.391.4194.2
2217/0.160.760.411.6059.4
2026/0.160.940.411.8036.7
1841/0.161.180.402.1023.2
1626/0.2541.490.452.4014.6
1441/0.2541.880.452.808.96
1265/0.2542.370.503.405.64
※The above datasheet is for reference only, please refer to the final specification.

Packing and Shipping:

Packaging and Shipping for Single Conductor Wire

Our Single Conductor Wire is carefully packaged and shipped to ensure its safe arrival at your doorstep.

Packaging

The Single Conductor Wire is first wrapped in a protective layer of plastic to prevent any damage during transportation.
Next, the wire is coiled and placed in a sturdy and durable cardboard box. The box is then sealed with high-quality tape to secure the wire inside.
We also offer custom packaging options to meet your specific needs and requirements.

Shipping

We offer various shipping options to deliver your Single Conductor Wire in a timely and cost-effective manner.
For domestic orders, we use trusted and reliable couriers such as UPS, FedEx, and USPS. We also offer expedited shipping options for urgent orders.
For international orders, we work with experienced freight forwarders to ensure smooth customs clearance and timely delivery.
Once your order has been shipped, we will provide you with a tracking number so you can monitor the status of your delivery.
At Single Conductor Wire, we take great care in packaging and shipping our products to ensure your complete satisfaction.

Ul 1569 AWM HooKup Wire 0Ul 1569 AWM HooKup Wire 1

Tags:

Unshielded One Core Cable,

Orange Single Core Flexible Wire,

AWM Single Conductor Wire
