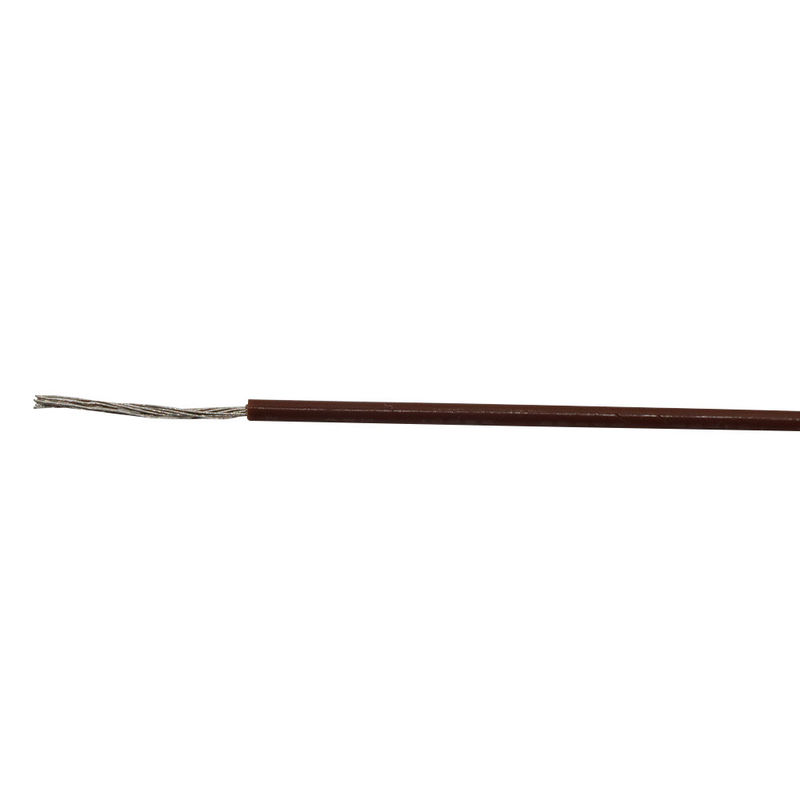

UL3656 AWM XLPE Electrical Hook Up Wire TC or BC Conductor
Product Description:
UL3656 AWM XLPE Electrical Hook Up Wire TC or BC Conductor
Rated Voltage: 300V
Rated Temperature: 150ºC
Insulation Material: XLPE
Conductor: Tinned or Bare, Stranded or Solid Copper
Reference Standard: UL758, UL1581, C22.2 No.210
Uniform insulation thickness of wire to ensure easy stripping and cutting.
For internal wiring of electronic and electrical equipment and appliance.
Technical Parameters:
| Conductor |
Insulation |
Max. Cond Resistance at 20°C
(Ω/km) |
| AWG |
Construction
(No./mm) |
Diameter
(mm) |
Thickness
(mm) |
Diameter
(mm) |
| 30 |
7/0.10 |
0.30 |
0.26 |
0.82 |
381.00 |
| 28 |
7/0.127 |
0.38 |
0.26 |
0.90 |
239.00 |
| 26 |
7/0.16 |
0.48 |
0.26 |
1.00 |
150.00 |
| 24 |
11/0.16 |
0.61 |
0.26 |
1.13 |
94.20 |
| 22 |
17/0.16 |
0.76 |
0.26 |
1.28 |
59.40 |
| 20 |
26/0.16 |
0.94 |
0.26 |
1.46 |
37.40 |
| 18 |
41/0.16 |
1.18 |
0.26 |
1.70 |
23.50 |
| 16 |
26/0.254 |
1.50 |
0.26 |
2.02 |
14.70 |
| ※The above datasheet is for reference only, please refer to the final specification. |
Packing and Shipping:
Single Conductor Wire Packaging and Shipping
Our Single Conductor Wire is carefully packaged to ensure its safe arrival at your doorstep.
Packaging
Each spool of Single Conductor Wire is wrapped in a protective layer of plastic to prevent damage during transit.
The spools are then placed in a sturdy cardboard box and secured with packing materials to prevent shifting.
Shipping
We offer various shipping options to suit your needs, including standard and expedited shipping.
Our team carefully prepares and ships your order within 1-3 business days.
Once your order has been shipped, you will receive a confirmation email with tracking information.
Please note that shipping times may vary depending on your location.
