Product Description:

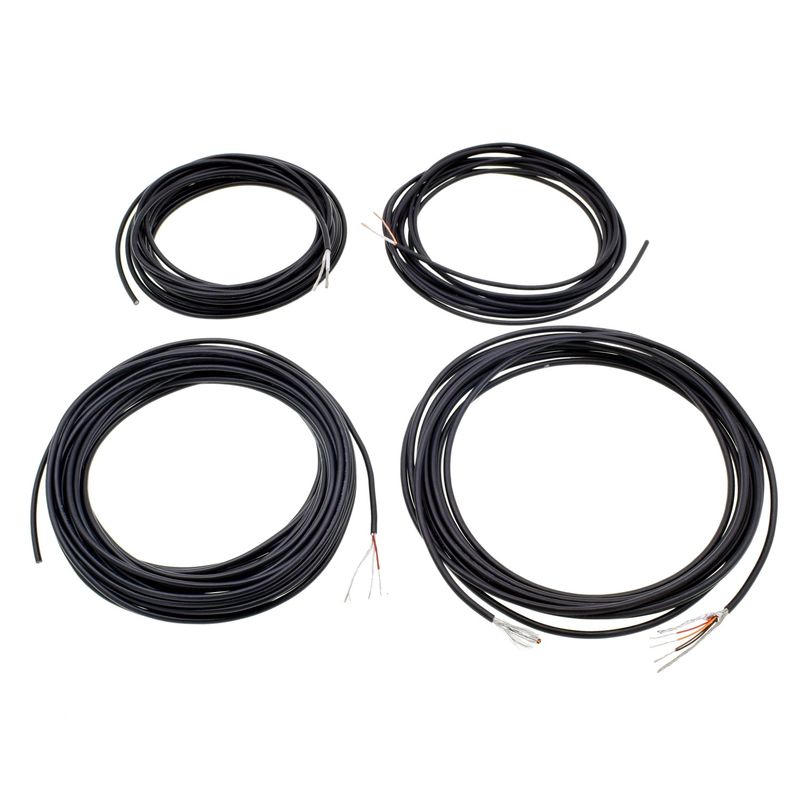

UL2464 80℃ 300V PVC Power Cable AL Braided Copper Shielded
-
Rated Voltage: 300V
-
Rated Temperature: 80ºC
-
Insulation Material: SR-PVC
-
Jacket Material: PVC
-
Conductor: Tinned or Bare, Stranded or Solid Copper
-
Optional: AL-Mylar, Copper Braided, Copper Drain Wire
-
Reference Standard: UL758, UL1581, C22.2 No.210
-
Passes UL VW-1 & CSA FT1 vertical flame test.
-
Uniform insulation thickness of wire to ensure easy stripping and cutting.
-
For internal wiring of electronic and electrical equipment and appliance, computer, audio and video, electronic circuits, power supply and signal transmission, power cord, lighting, extension cord, wiring harness, etc.
Technical Parameters:
| Conductor |
Insulation |
Jacket |
Max. Cond. Resistance at 20°C
(Ω/km) |
| No. of Cores |
AWG |
Construction
(No./mm) |
Thickness
(mm) |
Diameter
(mm) |
Diameter
(mm) |
| 3 |
28 |
7/0.127 |
0.26 |
0.90 |
4.00 |
239 |
| 4 |
28 |
7/0.127 |
0.26 |
0.90 |
4.80 |
239 |
| 5 |
28 |
7/0.127 |
0.26 |
0.90 |
5.00 |
239 |
| 6 |
28 |
7/0.127 |
0.26 |
0.90 |
5.00 |
239 |
| 8 |
28 |
7/0.127 |
0.26 |
0.90 |
5.00 |
239 |
| 9 |
26 |
7/0.16 |
0.26 |
1.00 |
6.30 |
150 |
| 10 |
26 |
7/0.16 |
0.26 |
1.00 |
6.60 |
150 |
| 11 |
26 |
7/0.20 |
0.26 |
1.00 |
6.60 |
150 |
| 12 |
28 |
7/0.16 |
0.26 |
0.90 |
6.00 |
239 |
| 15 |
24 |
7/0.127 |
0.26 |
1.12 |
8.00 |
94.2 |
| 18 |
28 |
7/0.127 |
0.26 |
0.90 |
7.40 |
239 |
| 20 |
24 |
7/0.20 |
0.26 |
1.12 |
8.50 |
94.2 |
| ※The above datasheet is for reference only, please refer to the final specification. |
