Product Description:

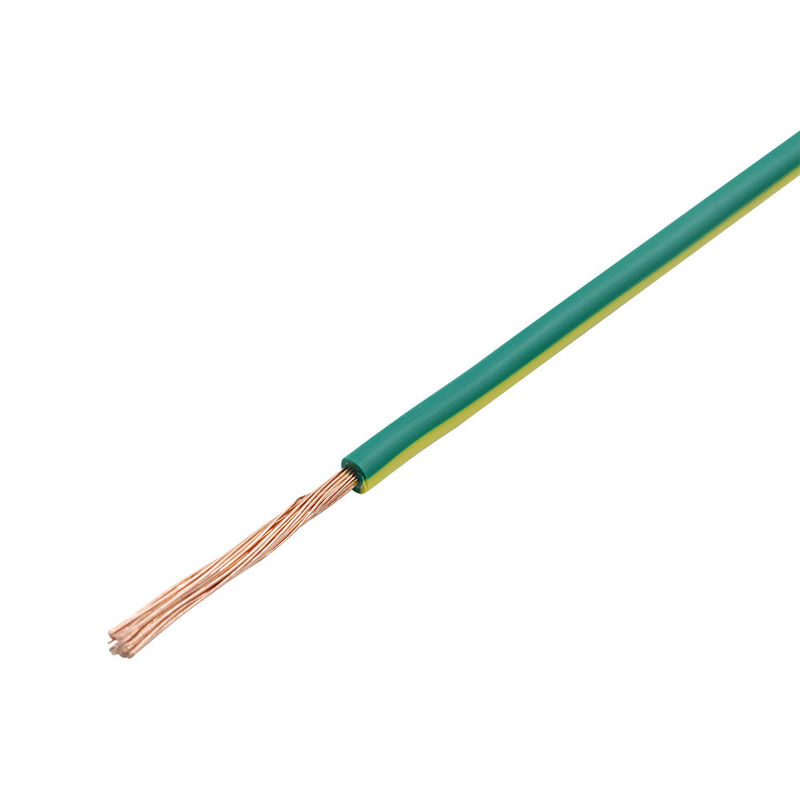

UL1332 FEP 200℃ 300V High Temperature for Generator Motor
-
Rated Voltage: 300V
-
Rated Temperature: 200ºC
-
Insulation Material: FEP
-
Conductor: Tinned Copper
-
Reference Standard: UL758, UL1581, C22.2 No.210
-
Passes UL VW-1 & CSA FT1 vertical flame test.
-
Uniform insulation thickness of wire to ensure easy stripping and cutting.
-
For internal wiring of home appliance, lighting, heater, motor, generator, UAV, robot, industrial equipment.
Technical Parameters:
| Conductor |
Insulation |
Max. Cond. Resistance at 20°C
(Ω/km) |
| AWG |
Construction
(No./mm) |
Diameter
(mm) |
Thickness
(mm) |
Diameter
(mm) |
| 28 |
1/0.32
7/0.12 |
0.32
0.36 |
0.305
0.305 |
0.87
0.91 |
381.00 |
| 26 |
7/0.16
19/0.10 |
0.48
0.48 |
0.305
0.305 |
1.09
1.11 |
150.00 |
| 24 |
1/0.50
7/0.20
19/0.12 |
0.5
0.6
0.6 |
0.305
0.305
0.305 |
1.11
1.21
1.21 |
94.20 |
| 22 |
1/0.65
7/0.254
19/0.15 |
0.65
0.76
0.75 |
0.33
0.33
0.33 |
1.31
1.42
1.41 |
59.40 |
| 20 |
1/0.81
7/0.31
26/0.16 |
0.81
0.93
0.93 |
0.33
0.33
0.33 |
1.47
1.59
1.59 |
36.70 |
| 18 |
1/1.02
7/0.39
19/0.235 |
1.02
1.17
1.17 |
0.33
0.33
0.33 |
1.68
1.83
1.83 |
23.20 |
| 16 |
1/1.30
7/0.49
19/0.30 |
1.30
1.47
1.50 |
0.33
0.33
0.33 |
1.96
2.13
2.16 |
14.60 |
| 14 |
19/0.37 |
1.85 |
0.33 |
2.51 |
8.96 |
| ※The above datasheet is for reference only, please refer to the final specification. |
