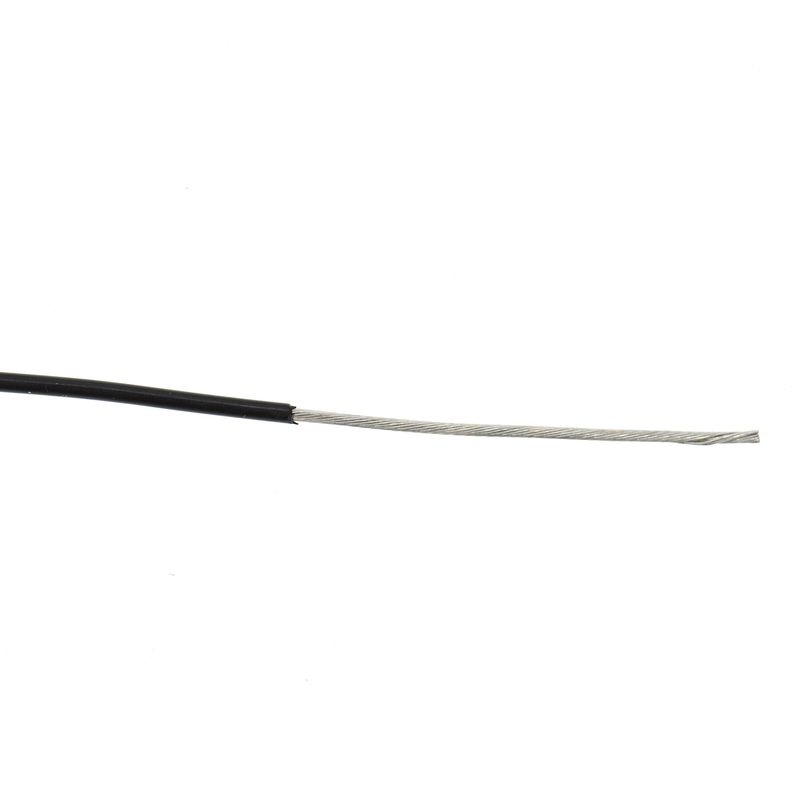

UL1331 FEP 150℃ 600V 26AWG High Temperature Electric Wire

Name: UL1331 FEP 150℃ 600V 26AWG High Temperature Electric Wire
Brand: XSD Cable
SKU: Single Conductor Wire
Rating: 5 (188 reviews)

Product Details

Place of Origin: Guangdong,China

Brand Name: XSD Cable

Certification: UL,CE,ISO:9001

Model Number: Single Conductor Wire

Payment & Shipping Terms

Minimum Order Quantity: 3050Meters

Price: Negotiate

Packaging Details: 31*31*15CM

Delivery Time: 7-14days

Payment Terms: T/T, D/A

Supply Ability: 1000000Meter/month

Get Best Price

Product Details

Product Description

Highlight:

Ul Style:	1331	Rated Temperature:	150°C
Rated Voltage:	600V	Conductor:	Tinned Copper
Reference Standard:	UL758, UL1581, C22.2 No.210	Application:	For Internal Wiring Of Home Appliance, Lighting, Heater, Motor, Generator, UAV, Robot, Industrial Equipment, Wiring Circuits, Control Circuits, Etc.

Ul Style:	1331
Rated Temperature:	150°C
Rated Voltage:	600V
Conductor:	Tinned Copper
Reference Standard:	UL758, UL1581, C22.2 No.210
Application:	For Internal Wiring Of Home Appliance, Lighting, Heater, Motor, Generator, UAV, Robot, Industrial Equipment, Wiring Circuits, Control Circuits, Etc.

UL1331 FEP 150℃ 600V 26AWG High Temperature Electric Wire

Product Description:

UL1331 FEP 150℃ 600V 26AWG High Temperature Electric Wire
Cable Assembly Manufacture.pdf
Cable Assembly Supplier.pdf

Rated Voltage: 600V
Rated Temperature: 150ºC
Insulation Material: FEP
Conductor: Tinned Copper
Reference Standard: UL758, UL1581, C22.2 No.210
Passes UL VW-1 & CSA FT1 vertical flame test.
Uniform insulation thickness of wire to ensure easy stripping and cutting.
For internal wiring of home appliance, lighting, heater, motor, generator, UAV, robot, industrial equipment, wiring circuits, control circuits, etc.

Technical Parameters:

Conductor			Insulation		Max. Cond. Resistance at 20°C (Ω/km)
AWG	Construction (No./mm)	Diameter (mm)	Thickness (mm)	Diameter (mm)	Max. Cond. Resistance at 20°C (Ω/km)
28	7/0.12	0.38	0.50	1.38	239.00
26	7/0.16	0.48	0.50	1.48	150.00
24	19/0.12	0.60	0.50	1.60	94.20
22	19/0.15	0.75	0.50	1.75	59.40
20	19/0.19	0.93	0.50	1.93	36.70
18	19/0.235	1.17	0.50	2.17	23.20
16	19/0.30	1.50	0.50	2.50	14.60
14	19/0.37	1.85	0.50	2.85	8.96
12	19/0.47	2.35	0.50	3.35	5.64
※The above datasheet is for reference only, please refer to the final specification.
