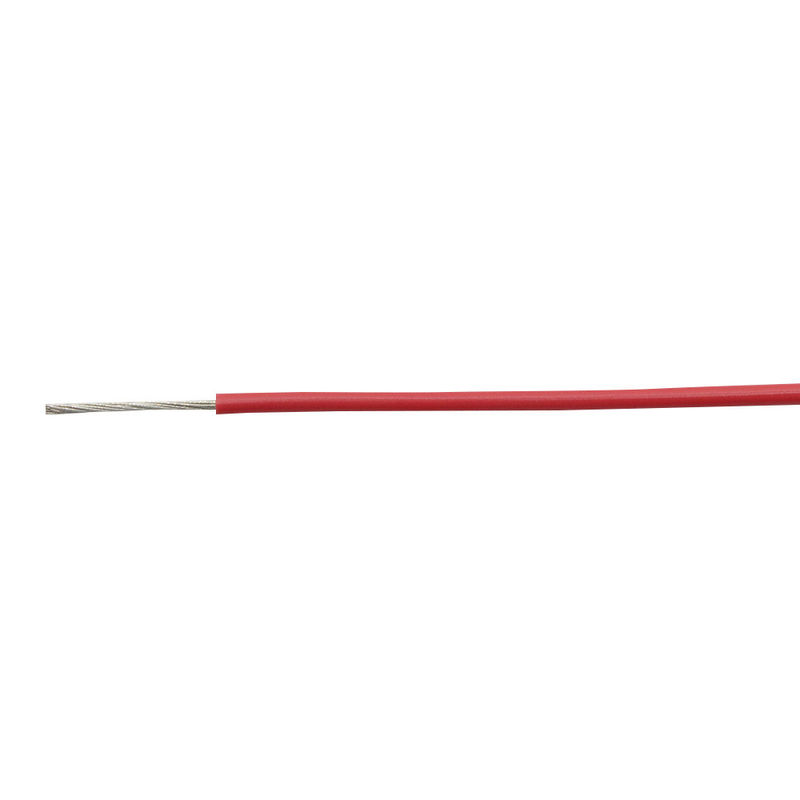

UL1330 FEP High Temperature 200℃ 600V Hookup Wire AWM Wire

Name: UL1330 FEP High Temperature 200℃ 600V Hookup Wire AWM Wire
Brand: XSD Cable
SKU: Single Conductor Wire
Rating: 4.5 (195 reviews)

Product Details

Place of Origin: Guangdong,China

Brand Name: XSD Cable

Certification: UL,CE,ISO:9001

Model Number: Single Conductor Wire

Payment & Shipping Terms

Minimum Order Quantity: 3050Meters

Price: Negotiate

Packaging Details: 31*31*15CM

Delivery Time: 7-14days

Payment Terms: T/T

Supply Ability: 1000000Meter/month

Get Best Price

Product Details

Product Description

Highlight:

Ul Style:	1330	Reference Standard:	UL758, UL1581, C22.2 No.210
Conductor:	Tinned Copper	Rated Voltage: 600V Rated Temperature:	200ºC

Ul Style:	1330
Reference Standard:	UL758, UL1581, C22.2 No.210
Conductor:	Tinned Copper
Rated Voltage: 600V Rated Temperature:	200ºC

UL1330 FEP High Temperature 200℃ 600V Hookup Wire AWM Wire

Product Description:

UL1330 FEP High Temperature 200℃ 600V Hookup Wire AWM Wire

Rated Voltage: 600V
Rated Temperature: 200ºC
Insulation Material: FEP
Conductor: Tinned Copper
Reference Standard: UL758, UL1581, C22.2 No.210
Passes UL VW-1 & CSA FT1 vertical flame test.
Uniform insulation thickness of wire to ensure easy stripping and cutting.
For internal wiring of home appliance, lighting, heater, motor, generator, UAV, robot, industrial equipment.

Technical Parameters:

Conductor			Insulation		Max. Cond. Resistance at 20°C (Ω/km)
AWG	Construction (No./mm)	Diameter (mm)	Thickness (mm)	Diameter (mm)	Max. Cond. Resistance at 20°C (Ω/km)
28	7/0.12	0.38	0.50	1.38	239.00
26	7/0.16	0.48	0.50	1.48	150.00
24	19/0.12	0.60	0.50	1.60	94.20
22	19/0.15	0.75	0.50	1.75	59.40
20	19/0.19	0.93	0.50	1.93	36.70
18	19/0.235	1.17	0.50	2.17	23.20
16	19/0.30	1.50	0.50	2.50	14.60
14	19/0.37	1.85	0.50	2.85	8.96
12	19/0.47	2.35	0.50	3.35	5.64
※The above datasheet is for reference only, please refer to the final specification.

FAQ:

Q:Is the quality of your product guaranteed?
A:Yes, our workshop are equipped with Brand-new and Advanced Machines and Test Equipment. Our production process and quality are in strictly accordance with the international standards and customers’ requirements. We are warmly welcome your inspection team to examine.
Q:How could I pay?
A:We prefer T/T or L/C at sight. If you prefer other payment terms, please contact us freely.
Q:Can I get a free sample?
A:Yes, we can provide the existing item’s sample without charge but freight collected. If there is any special samples requirement, please contact us for more details.
Q:Are you a manufacturer?
A:Yes, we are a manufacturer located in Dongguan city of China. We can provide OEM/ODM services for customers around the world.
