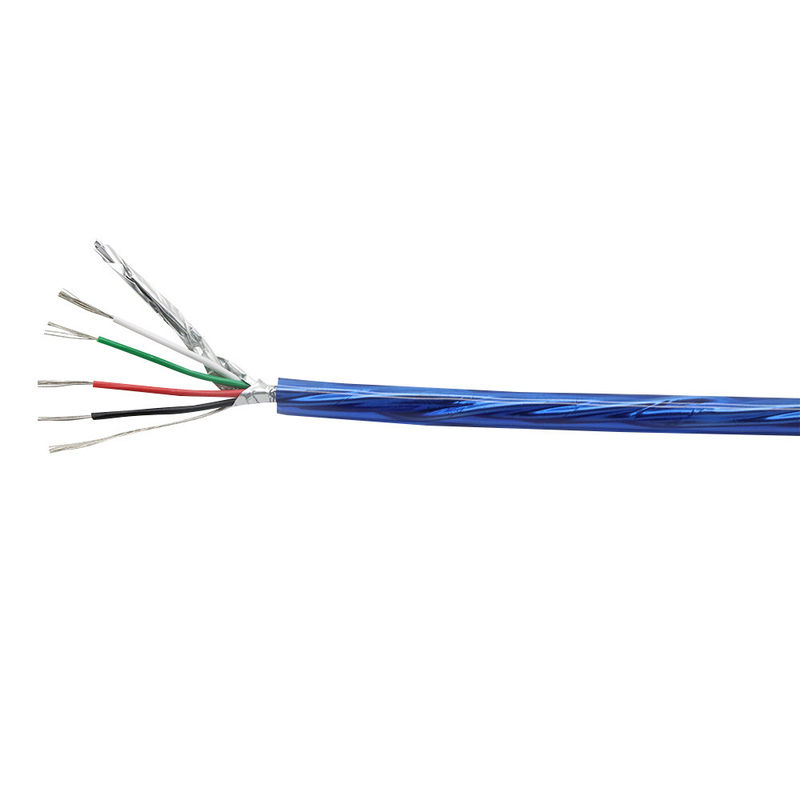

UL2725 PVC Multi Core Shielded Cable USB Cable Signal Cable

Name: UL2725 PVC Multi Core Shielded Cable USB Cable Signal Cable
Brand: XSD Cable
SKU: Multi Conductor Cable
Rating: 5 (184 reviews)

Product Details

Place of Origin: Guangdong,China

Brand Name: XSD Cable

Certification: UL,CE,ISO:9001

Model Number: Multi Conductor Cable

Payment & Shipping Terms

Minimum Order Quantity: 3050Meters

Price: Negotiate

Packaging Details: 31*31*15CM

Delivery Time: 7-30days

Payment Terms: T/T

Supply Ability: 1000000Meter/month

Get Best Price

Product Details

Product Description

Highlight:

Rated Temperature:	80ºC	Rated Voltage:	30V
Reference Standard:	UL758, UL1581, C22.2 No.210	Product Name:	Multi Conductor Cable
UL Style:	2725	Application:	Internal Wiring Of Electrical And Electronic Equipment And Appliances

Rated Temperature:	80ºC
Rated Voltage:	30V
Reference Standard:	UL758, UL1581, C22.2 No.210
Product Name:	Multi Conductor Cable
UL Style:	2725
Application:	Internal Wiring Of Electrical And Electronic Equipment And Appliances

UL2725 PVC Multi Core Shielded Cable USB Cable Signal Cable

Product Description:

UL2725 Multi Conductor Shielded Cable PVC Insulated Cable

① Rated temperature: 80ºC

② Rated voltage: 30V

③ Reference Standard: UL758, UL1581, C22.2 No.210

④ Passes UL VW-1 & CSA FT1 vertical flame test.

⑤ Uniform insulation thickness of wire to ensure easy stripping and cutting.

⑥ For internal wiring of electronic and electrical equipment and appliance.

Technical Parameters:

Conductor			Insulation	Jacket	Max. Cond Resistance at 20°C (Ω/km)
No. of Cores	AWG	Construction (No./mm)	Diameter (mm)	Diameter (mm)	Max. Cond Resistance at 20°C (Ω/km)
2	30	7/0.10	0.80	2.70	381
4	30	7/0.10	0.80	2.90	381
8	30	7/0.10	0.56	3.50	381
2	28	19/0.08	0.70	2.20	239
11	28	7/0.127	0.82	5.20	239
11	28	7/0.127	0.66	3.65	239
13	28	7/0.127	0.66	4.50	239
4	26	7/0.16	1.00	5.00	150

FAQ:

Q1: Are you a manufacturer?

A1: Yes, we are a manufacturer located in Dongguan city of China. We are able to provide OEM/ODM services for wires, cables, custom cable assembly around the world.

Q2: Can I get a free sample?
A2: Yes, we are willing to provide sample in stock for free but freight collected. Welcome to contact us for customized products.

Q3: Is the quality of your product guaranteed?
A3: Yes, our workshop are equipped with Brand-new and Advanced Machines & Test Equipments. Our production process and quality control are in strictly accordance with the international standards and customers’ requirements.

Q4: What is the delivery lead time?
A4: Generally, the lead time is around 10-15 days for wire production, around 20-40 days for cable assembly. It depends on quantity and the complexity of the products.
