Product Description:

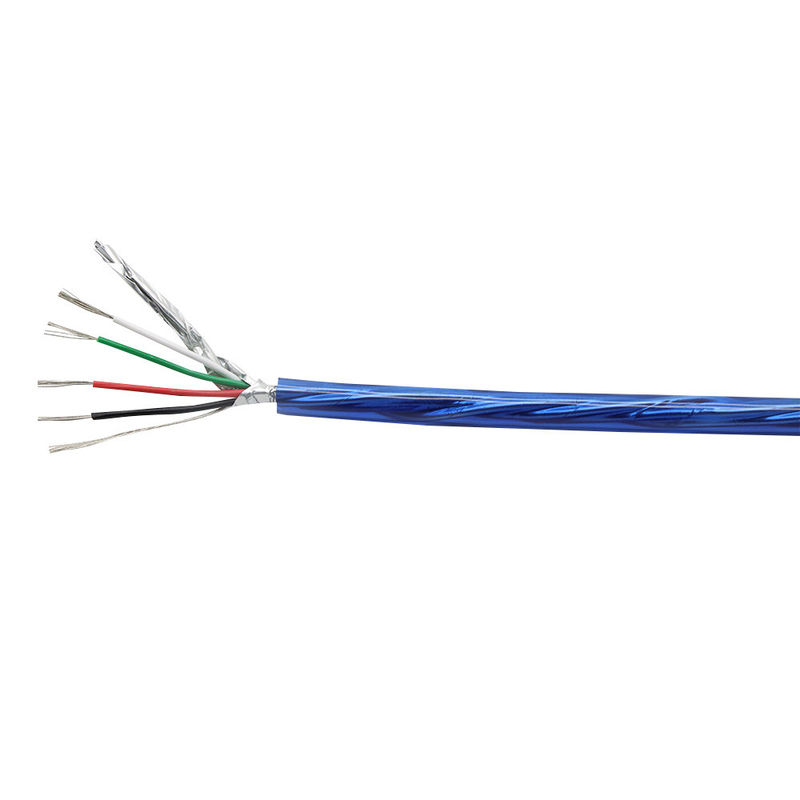

Multi Conductor Cable is a kind of power cable used in solar systems. It is constructed with 2-24 conductors of 20-10 AWG gauge, and covered with PVC jacket. It has a temperature rating of -20°C to +105°C and a voltage rating of 300V, 600V, 1000V. This cable is suitable for a variety of applications, including automotive, industrial, instrumentation, robotics, and medical.
Features:
- Product Name: Multi Conductor Cable
- Insulation Material: PVC, FEP, PFA, ETFE, TPE
- Voltage Rating: 300V, 600V, 1000V
- Overall Diameter: 0.100-0.500
- Cable Type: Multi Conductor Cable
- Jacket Material: PVC, FEP, PFA, ETFE, TPE
- Flame resistance: Yes
- Internal wiring appliance: Yes
- Solar systerm: Yes
Technical Parameters:
| Attributes |
Specification |
| Conductor Material |
Tinned Copper, Silver Plated Copper, Nickel Plated Copper |
| Overall Diameter |
0.100-0.500 |
| Shielding |
Unshielded, Foil Shield, Braid Shield |
| Voltage Rating |
300V, 600V, 1000V |
| Number of Conductors |
2-24 |
| Insulation Material |
PVC, FEP, PFA, ETFE, TPE |
| Applications |
Automotive, Industrial, Instrumentation, Robotics, Medical |
| Temperature Rating |
-20°C To +105°C |
| Cable Type |
Multi Conductor Cable |
| Jacket Color |
Black, White, Red, Orange, Blue, Green, Yellow, Gray, Brown |
| Jacket |
PVC Jacket |
| Usage |
For Industrial Wiring |
| Flame Resistance |
Yes |
Applications:
XSD Multi Conductor Cable is an ideal solution for many applications, including solar systems, computer cables and more. It is made with high-quality materials, providing superior performance and reliability. The jacket is available in a variety of colors, including black, white, red, orange, blue, green, yellow, gray and brown, and the overall diameter can range from 0.100 to 0.500. The jacket material can be PVC, FEP, PFA, ETFE or TPE, and the shielding can be either unshielded, foil shield or AL braided. Conductor gauge can range from 20-10 AWG. This durable multi conductor cable is a great choice for any application.
Customization:
XSD Multi Conductor Cable
- Brand Name: XSD
- Place of Origin: China
- Shielding: Unshielded, Foil Shield, Braid Shield
- Conductor Stranding: 7x30, 7x32, 19x29, 19x30, 19x34, 19x36
- Jacket Material: PVC, FEP, PFA, ETFE, TPE
- Conductor Gauge: 20-10 AWG
- Cable Type: Multi Conductor Cable
- Flame Resistance: Suitable for industrial wiring
Support and Services:
Multi Conductor Cable Technical Support and Service
Our technical support and service for Multi Conductor Cables are designed to help you maximize the performance of your cables. Our team of professionals is available to answer your questions and provide guidance on the installation and maintenance of your cables. We offer a variety of services including:
- Comprehensive troubleshooting and support for any technical issues
- On-site installation and maintenance services
- Replacement parts and components
- Customized training and seminars
- 24/7 customer service and support
At Multi Conductor Cable, our technical support and service team is committed to providing you with the best possible service and support. Contact us today to learn more about our services and how we can help you get the most out of your cables.
