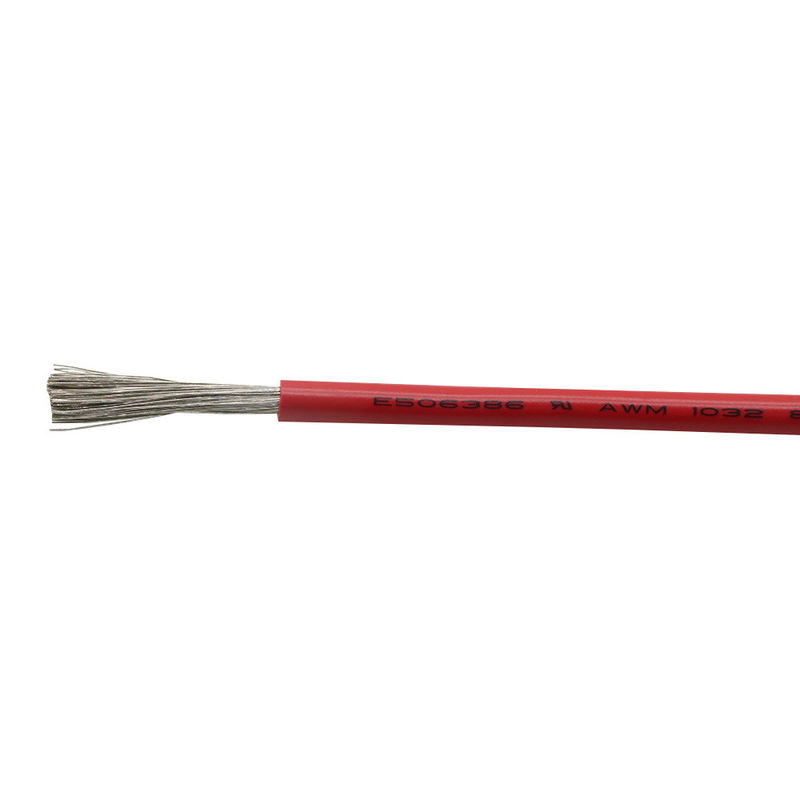

FEP Jacket Copper Single Conductor Wire 18 AWG For Equipment

Name: FEP Jacket Copper Single Conductor Wire 18 AWG For Equipment
Brand: XSD Cable
SKU: Single Conductor Wire
Rating: 4.8 (186 reviews)

Product Details

Place of Origin: Guangdong,China

Brand Name: XSD Cable

Certification: UL,CE,ISO:9001

Model Number: Single Conductor Wire

Payment & Shipping Terms

Minimum Order Quantity: 3050Meters

Price: Negotiate

Packaging Details: 31*31*15CM

Delivery Time: 7-30days

Payment Terms: T/T

Supply Ability: 1000000pcs/month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                FEP Single Conductor Wire, Single Conductor Wire 18 AWG


Jacket Color:	Black	Conductor Stranding:	7x26
Number Of Conductors:	1	Conductor Material:	Copper
Application:	Equipment	Product Name:	Hookup Wire
Insulation:	FEP	Conductor Size:	18 AWG

Jacket Color:	Black
Conductor Stranding:	7x26
Number Of Conductors:	1
Conductor Material:	Copper
Application:	Equipment
Product Name:	Hookup Wire
Insulation:	FEP
Conductor Size:	18 AWG

FEP Jacket Copper Single Conductor Wire 18 AWG For Equipment

FEP Jacket Copper Single Conductor Wire 18 AWG For Equipment

Technical Parameters:

Conductor			Insulation		Max. Cond Resistance at 20°C (Ω/km)
AWG	Construction (No./mm)	Diameter (mm)	Thickness (mm)	Diameter (mm)	Max. Cond Resistance at 20°C (Ω/km)
28	1/0.32 7/0.12	0.32 0.36	0.305 0.305	0.87 0.91	381.00
26	7/0.16 19/0.10	0.48 0.48	0.305 0.305	1.09 1.11	150.00
24	1/0.50 7/0.20 19/0.12	0.5 0.6 0.6	0.305 0.305 0.305	1.11 1.21 1.21	94.20
22	1/0.65 7/0.254 19/0.15	0.65 0.76 0.75	0.33 0.33 0.33	1.31 1.42 1.41	59.40
20	1/0.81 7/0.31 26/0.16	0.81 0.93 0.93	0.33 0.33 0.33	1.47 1.59 1.59	36.70
18	1/1.02 7/0.39 19/0.235	1.02 1.17 1.17	0.33 0.33 0.33	1.68 1.83 1.83	23.20
16	1/1.30 7/0.49 19/0.30	1.30 1.47 1.50	0.33 0.33 0.33	1.96 2.13 2.16	14.60
14	19/0.37	1.85	0.33	2.51	8.96

FEP Jacket Copper Single Conductor Wire 18 AWG For Equipment 0

Customization:

Customize Your Single Conductor Wire

The Single Conductor Wire from XSD Cable is perfect for a variety of applications. Our Single-Core Cable is UL, CE and ISO: 9001 certified, and the minimum order quantity is 3050Meters. The packaging details are 31*31*15CM, and the delivery time is 7-30days. We accept payment via T/T, and can supply up to 1000000pcs/month. The conductor stranding is 7x26, and the temperature rating is 90°C. This Single-Conductor Wire also has a CSA type of TEW, with a jacket thickness of 0.015 inches. Price is negotiable. Get your Single-Conductor Wire today!

Support and Services:

Technical Support and Service for Single Conductor Wire

We provide technical support and service for our single conductor wire products, both online and through our customer service team. Our team is available to answer any questions you may have about our products and installation. We also provide installation instructions and technical documents to help you install the wire correctly.

For more information about our technical support and service, please contact our customer service team or visit our website.
