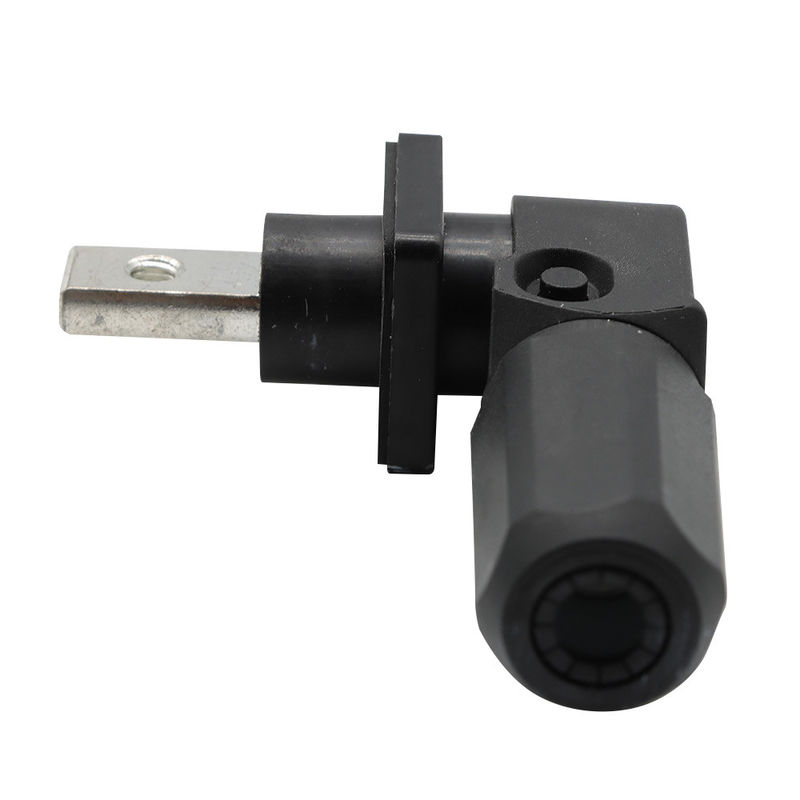

100A DC 1000V Battery Storage Connector Male Female IP67 Waterproof

Name: 100A DC 1000V Battery Storage Connector Male Female IP67 Waterproof
Brand: XSD Cable
SKU: Power Connector
Rating: 4.6 (185 reviews)

Product Details

Place of Origin: Guangdong,China

Brand Name: XSD Cable

Certification: UL,ISO:9001

Model Number: Power Connector

Payment & Shipping Terms

Minimum Order Quantity: 1000PCS

Price: Negotiable

Packaging Details: 32*27*17cm

Delivery Time: 7-30Days

Payment Terms: T/T

Supply Ability: 200000PCS/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                100A Battery Storage Connector, Battery Storage Connector IP67


Contact Plating:	Customized	Rated Current:	60A,100A,120A,150A,200A,300A,400A
Rated Voltage:	DC1000V	Gender:	Male
Insulation Resistance:	1000MΩ	Material:	Brass
Operating Temp.:	-40℃~125℃	Color:	Orange,Black,Red

Contact Plating:	Customized
Rated Current:	60A,100A,120A,150A,200A,300A,400A
Rated Voltage:	DC1000V
Gender:	Male
Insulation Resistance:	1000MΩ
Material:	Brass
Operating Temp.:	-40℃~125℃
Color:	Orange,Black,Red

100A DC 1000V Battery Storage Connector Male Female IP67 Waterproof

100A DC1000V PA66+30%GF Battery Storage Connector Male/Female IP67 Waterproof

Material

Shell:PA66+30%GF

Electrical Copper Row:Brass,nickel plated

Electrical Performance

Rated Current:60A,100A,120A,150A,200A,250A,300A,350A,400A

Rated Voltage:DC1000V

Impulse Withstand Voltage:AC5000V, Leakage≤1mA

Insulation Resistance:DC2500V, Resistance Value≥1000MΩ

Operating Environment

Operating Temp.:-40℃~125℃

Operating Humidity:5%~95%RH

Flame Resistance:UL94 V-0

Salt Spray Test:48H

100A DC 1000V Battery Storage Connector Male Female IP67 Waterproof 0

100A DC 1000V Battery Storage Connector Male Female IP67 Waterproof 1

100A DC 1000V Battery Storage Connector Male Female IP67 Waterproof 2

Product	Battery Storage Connector
Plug/Socket	Gender	Male/Female
	Rated Current	60A,100A,120A,150A,200A,300A,400A
	Orientation	Straight / Right Angle
Wire	Model	NSGAFÖU Rubber Wire, UL1015, UL10269, UL11627, UL3321, UL3271, etc.
	Size	10mm2,16MM2,25MM2,35MM2,50MM2,70MM2,95mm2
Terminal/Lug	Model	SC10~SC95
	Applicable Wire Range	10mm2~95mm2
Features	IP67 Waterproof, Flame Retardant, High Temperature Retardant
	Touch Proof, Safe Handling, Durable Design, Reliable Connection
	Quick Lock, Press-to-Release Design, High Pressure Resistance
Application	Solar Energy Storage System (ESS)
	Energy Storage Cabinet, Battery Pack, Battery Storage Tank
	Energy Storage Converter, Power Energy Storage System
Verification	UL, VDE, CCC, ISO 9001, IATF 16949, RoHS, REACH, etc.
OEM	Welcomed

Part Number

Color	Mfr. P/N	Color	Mfr. P/N
Black	XSD06R10K0B01	Red	XSD08R35K1R01
Orange	XSD06R10K0001	Black	XSD08R50K0B01
Red	XSD06R10K0R01	Orange	XSD08R50K0001
Black	XSD06R16K0B01	Red	XSD08R50K0R01
Orange	XSD06R16K0001	Black	XSD10R70K2B02
Red	XSD06R16K0R01	Orange	XSD10R70K1002
Black	XSD06R25K0B01	Red	XSD10R70K1R02
Orange	XSD06R25K0001	Black	XSD10R95K2B02
Red	XSD06R25K0R01	Orange	XSD10R95K1002
Black	XSD08R25K2B02	Red	XSD10R95K1R02
Orange	XSD08R25K1002	Black	XSD12R70K2B01
Red	XSD08R25K1R02	Orange	XSD12R70K1001
Black	XSD08R25K0B01	Red	XSD12R70K1R01
Orange	XSD08R25K0001	Black	XSD12R95K2B01
Red	XSD08R25K1R01	Orange	XSD12R95K1001
Black	XSD08R35K0B01	Red	XSD12R95K1R01
Orange	XSD08R35K0001

FAQ

Q1: Are you a manufacturer?
A1: Yes, we are a manufacturer located in Dongguan city of China. We are able to provide OEM/ODM services for wires, cables, custom cable assembly around the world.

Q2: Can I get a free sample?
A2: Yes, we are willing to provide sample in stock for free but freight collected. Welcome to contact us for customized products.

Q3: Is the quality of your product guaranteed?
A3: Yes, our workshop are equipped with Brand-new and Advanced Machines & Test Equipments. Our production process and quality control are in strictly accordance with the international standards and customers’ requirements.

Q4: What is the delivery lead time?
A4: Generally, the lead time is around 10-15 days for wire production, around 20-40 days for cable assembly. It depends on quantity and the complexity of the product.
